Hyundai HAB22 Auxiliary Contact Block HAB 22 Series: Hyundai HAB (Auxiliary Contacts for Hyundai Contactors) Model: HAB22 Type: Auxiliary Contact Block Contacts: 2NO + 2NC (that’s what “22” indicates) Mounting: Front-mounted on Hyundai contactors (such as HMC series) Function: Provides additional auxiliary contacts for control and signaling circuits, used for interlocking, signaling, and control logic […]

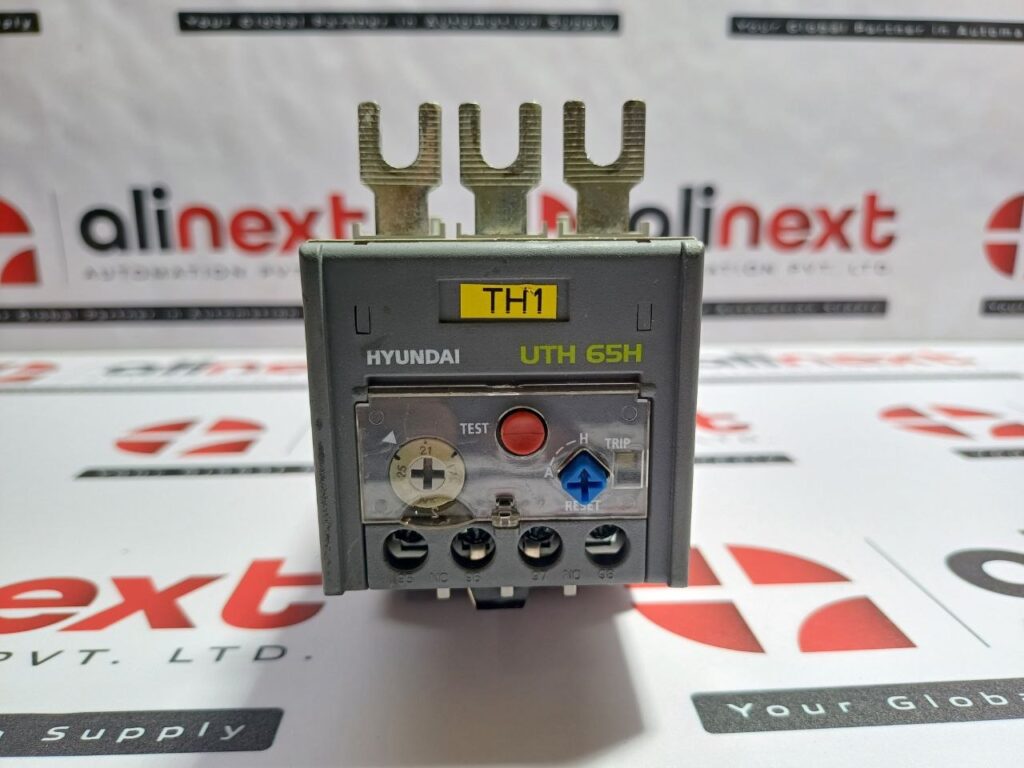

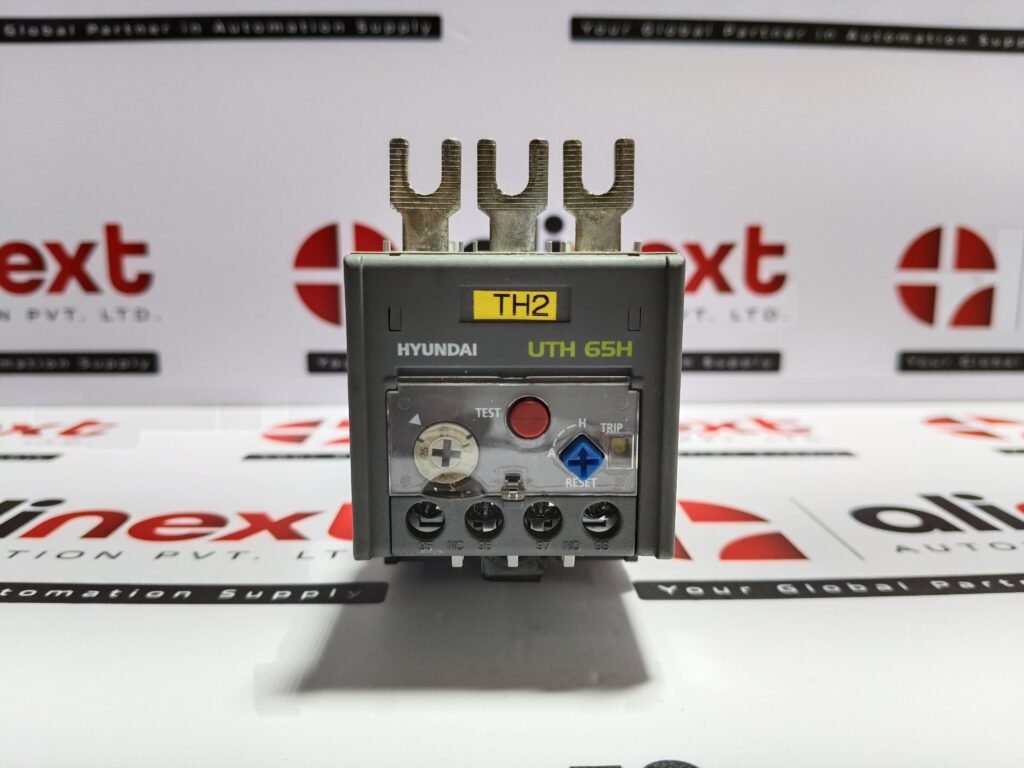

Hyundai UTH65 Thermal Overload Relay UTH 65H 34-50A Type: Thermal Overload Relay (3-phase protection) Standards / Compliance: IEC / EN 60947 standard for overload relays Current Adjustment / Setting Range: 34-50 A Ith (Minimum Thermal Current): 5 A Insulation Voltage (Ui): 690 V Trip Rating / Dial Behavior: Trip occurs at ~ 120% of the […]

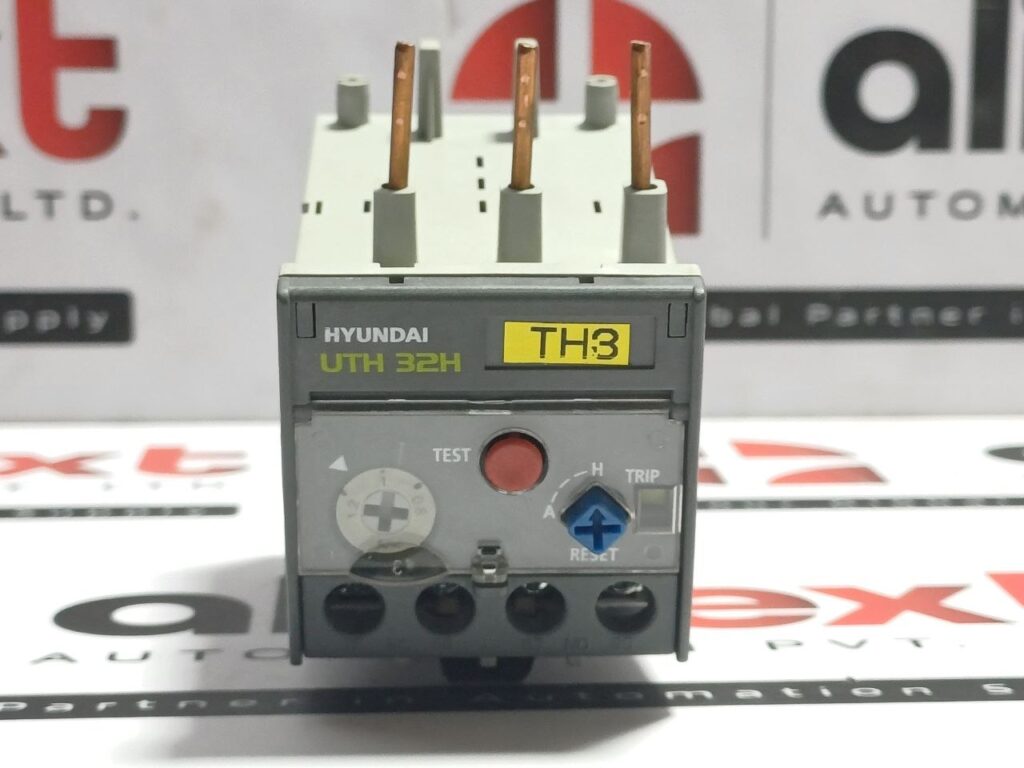

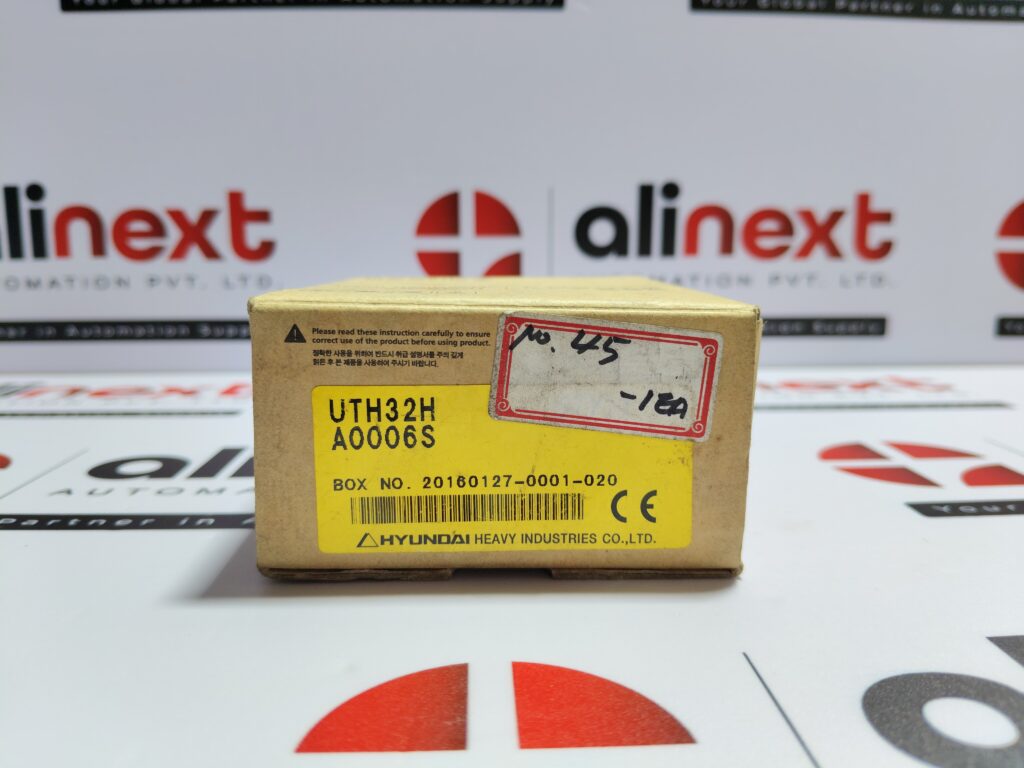

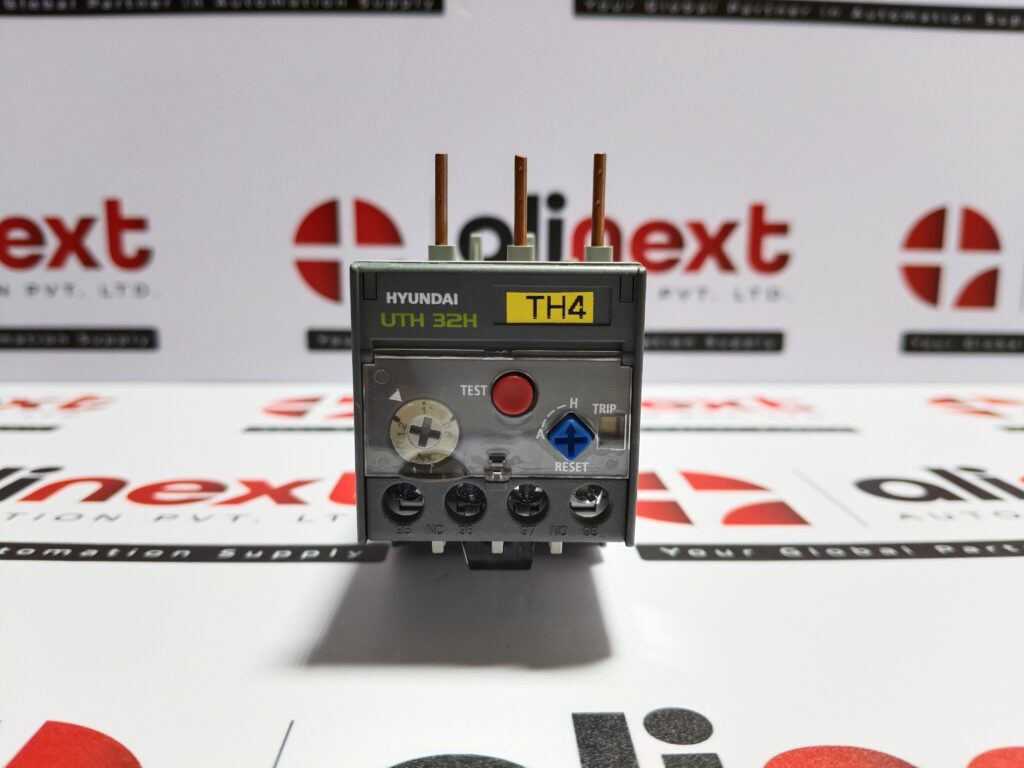

Hyundai UTH32H Thermal Overload Relay UTH 32H Ith: 5 A Ui: 690 V Trip Class: Class 10A (approx. 2 min trip at 150% overload, hot state) Poles: 3-pole protection + auxiliary contacts Frequency: 50/60 Hz Mounting: Direct mounting with Hyundai UMC contactors (UMC20–UMC32 range)  1 Pcs Available Weight: 0.160 kgs Approx. ref no: 288

Hyundai UTH32H Thermal Overload Relay UTH 32H Ith: 5 A Ui: 690 V Trip Class: Class 10A (approx. 2 min trip at 150% overload, hot state) Poles: 3-pole protection + auxiliary contacts Frequency: 50/60 Hz Mounting: Direct mounting with Hyundai UMC contactors (UMC20–UMC32 range)  1 Pcs Available Weight: 0.190 kgs Approx. ref no: 394

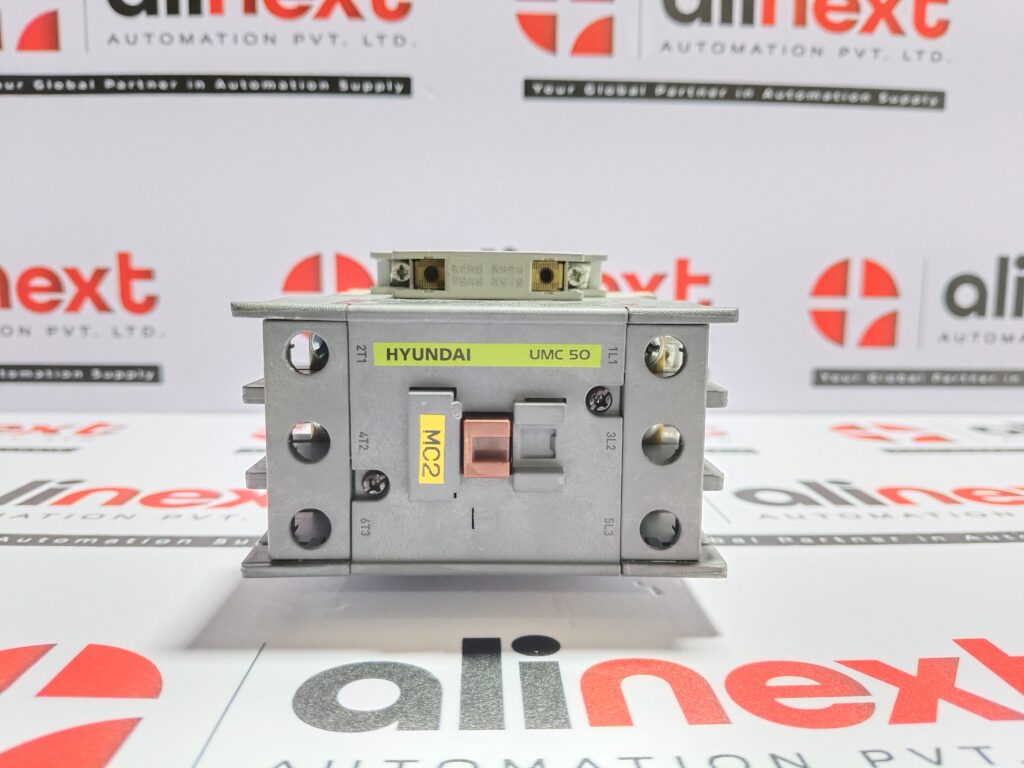

Hyundai UMC 50 Magnetic Contactor UMC50 Rated Thermal Current (Ith): ~ 80 A Standards: IEC / EN 60947-4-1 Insulation Voltage (Ui): ~ 750 V AC Rated Operational Voltage (Ue): 400-440 V AC (50/60 Hz) (also some listings mention ~400V 50Hz) Impulse Withstand Voltage (Uimp): ~ 8 kV Auxiliary Contacts Rating: A600-P300 (auxiliary usage category) Wire Size / […]

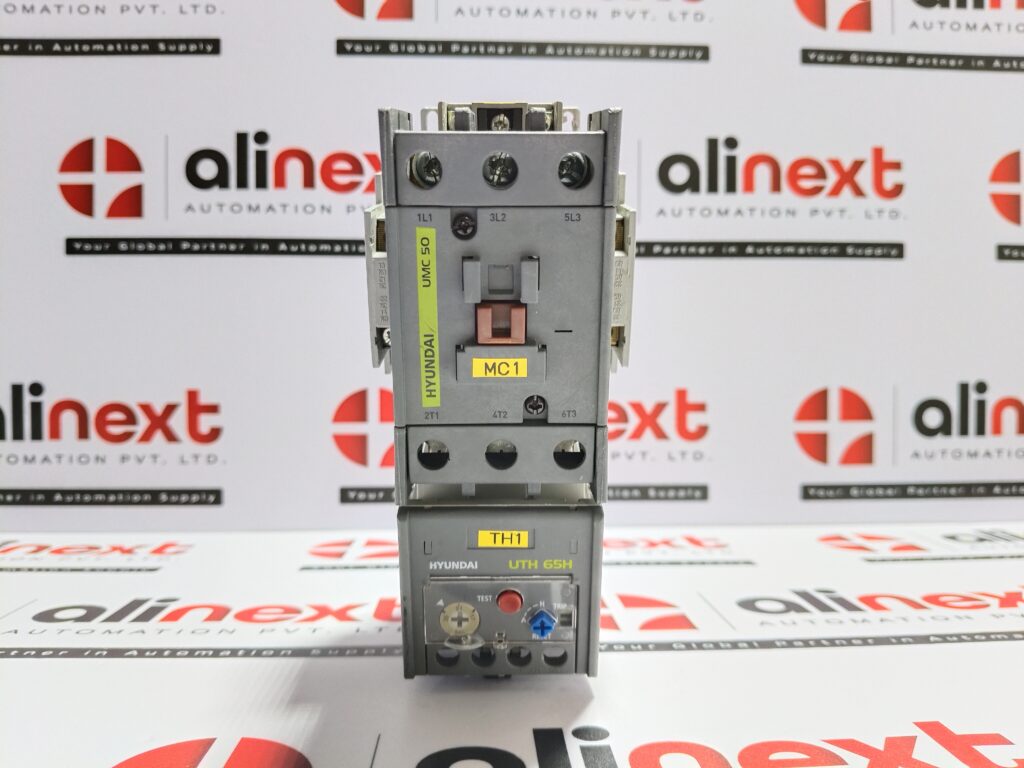

Hyundai UMC 50 | UTH 65H Contactor with Relay UMC50 | UTH65H Contactor UMC50 Rated Thermal Current Ith = 80 A Insulation Voltage Ui = 750 V AC Impulse Withstand Voltage Uimp = 8 kV Operational voltages: 400V 50Hz, 400-440V 60Hz etc Auxiliary contacts type: A600-P300 (aux capacity) Wire Size & Torque: AWG 4 copper, […]

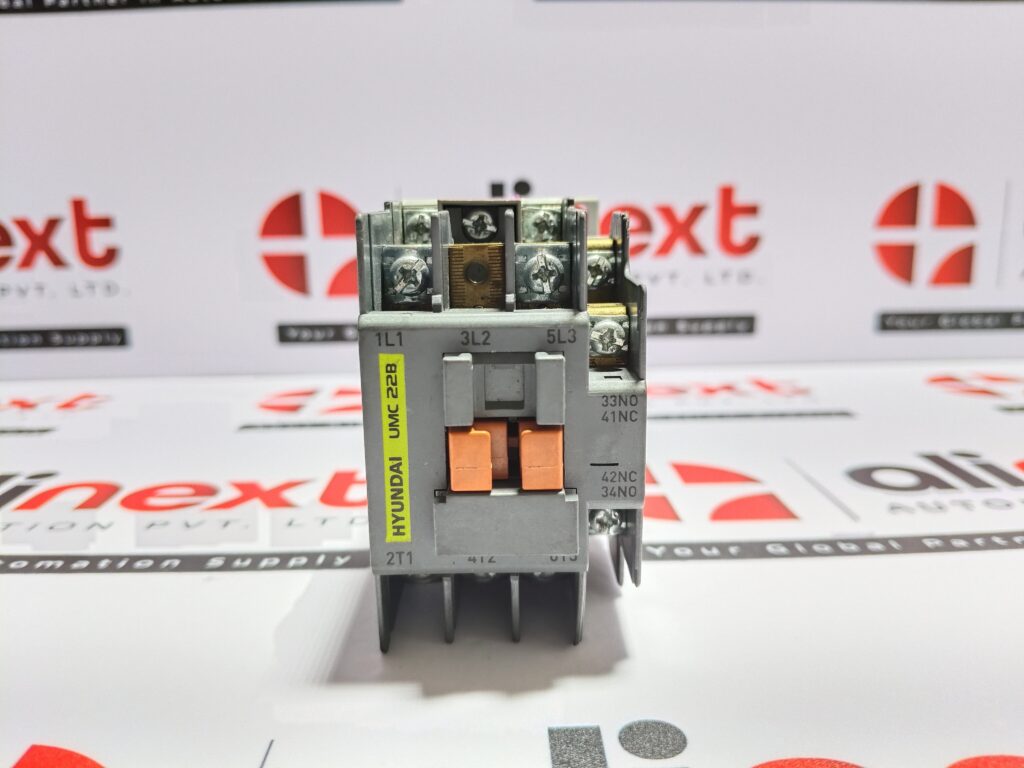

Hyundai UMC 22B Magnetic Contactor UMC22B 32Amp 400-440V Product: Hyundai UMC-22B Magnetic Contactor Standard / Compliance: IEC / EN 60947-4-1; AC-3-0-0 duty Thermal / Continuous Current (Ith): 32 A Rated Insulation Voltage (Ui): 750 V AC Impulse Withstand Voltage (Uimp): 6 kV Continuous Current (operating for contactor switching): 20 A (for certain coil/voltage ratings) Auxiliary […]

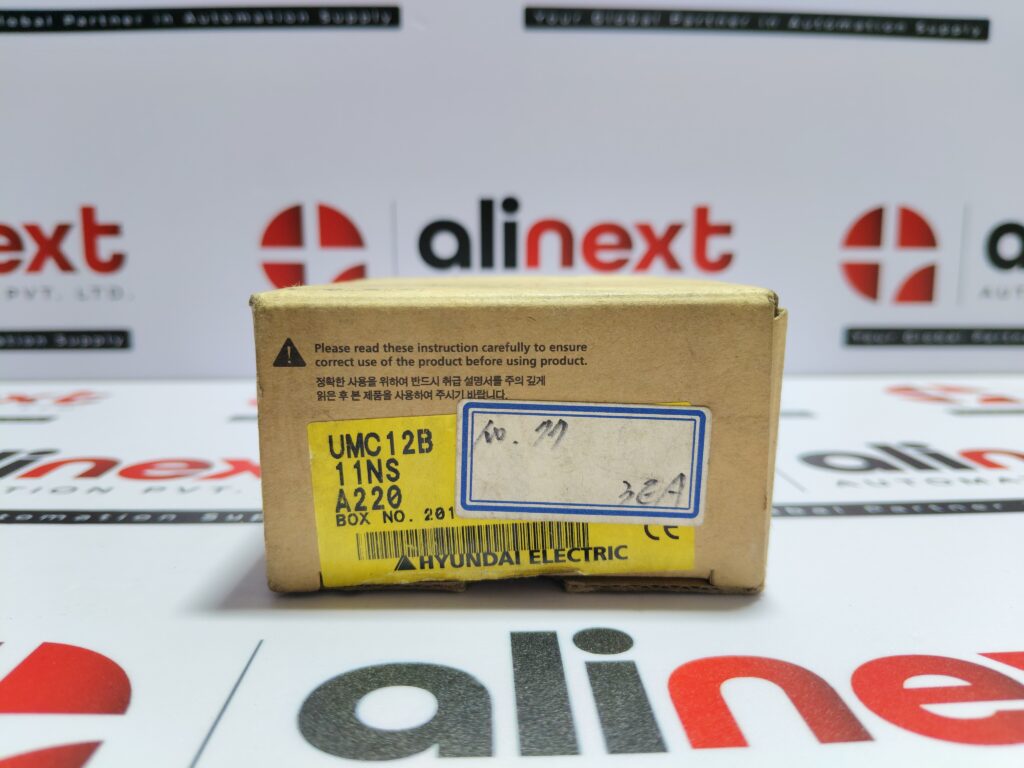

Hyundai Umc 12b Magnetic Contactor 750v~ 20a Hyundai Heavy Industries Co., Ltd. Magnetic Contactor Ac Electronic Switch Umc 12b Iec / En 60947-4-1 Ith= 20a Ui= 750v~ Uimp= 6kv K60947-4-1, Ac3-0-0, 50/60hz Hg02001-14055a Ith= 16a Continuous Current: 20a Awg 10, 75°c Cu Wire Only Aux. Cont. A600-p300 Torque 23kgf-cm (2.2 N-m) 200v 50hz 200v~220v 60hz […]

Hyundai UAB40 | UTH32H | UMC25 Contactor with Relay & Auxiliary Contact Block UAB 40 | UTH 32H | UMC 25 UMC-25: Hyundai U-Series Magnetic Contactor (frame “25A” class) UTH-32H: Hyundai U-Series Thermal Overload Relay (for 32A frame) UAB-40: Hyundai Auxiliary Contact Block (auxiliary contacts) used with UMC / U-Series contactors. (Assumed based on naming […]

HYUNDAI | UAB 22 | UAB 22NR | AUXILIARY CONTACT BLOCK HYUNDAI UAB 22NR UAB 22 IEC/EN 60947 ITH=16A UI=690V~ AUX.CONT. A600-P150 AWG 14, 75°C CU WIRE ONLY AUX. CONTACT BLOCK MADE IN KOREA 2 Pc Available Weight: 0.070 kgs Approx. ref no: 420

 Hyundai UAB 22 Magnetic Contactor With Auxiliary  Contact Block 690V~ 16A Hyundai UAB 22 Auxiliary  Contact Block Ui 690V 16A Made in korea 1 pcs available Weight: 0.060 kgs approx. Ref no: 710

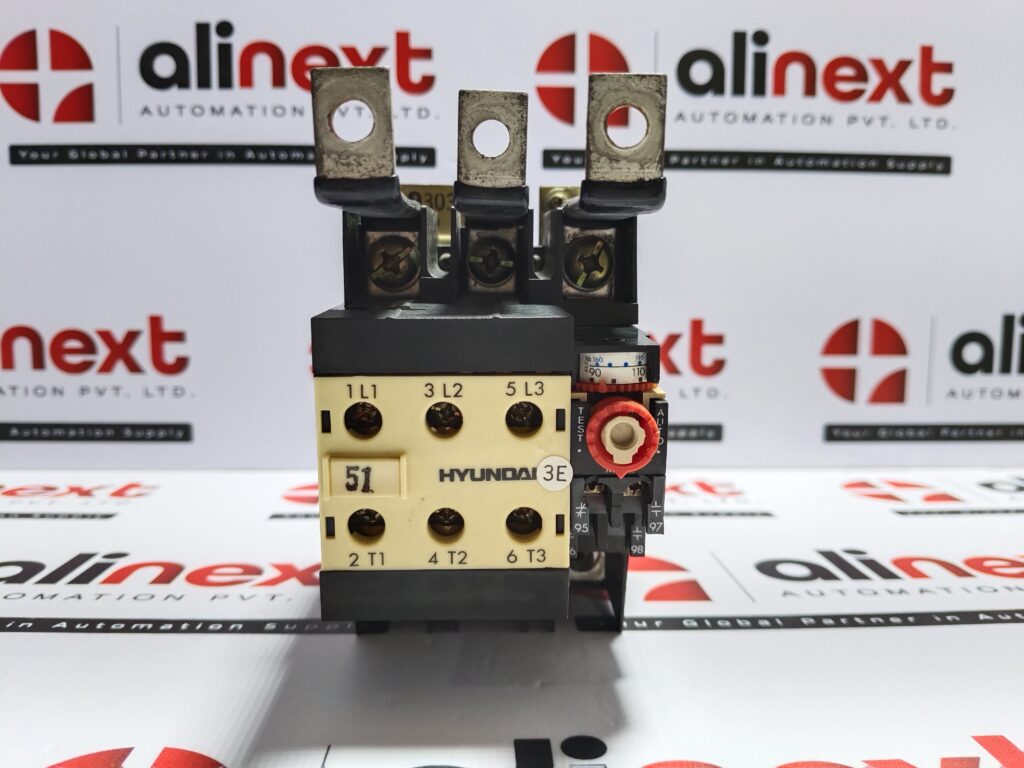

Hyundai Thermal Overcurrent Relay HOR 3K110 Product Type: Thermal Overcurrent / Overload Relay Brand / Licensed by: Hyundai Electrical Engineering Co., Ltd. / Stromberg Oy Rated Operational Voltage (Ue): 660 V AC Insulation Voltage (Ui): 660 V AC Ith (Thermal Current Rating) : 5 A Trip Setting: 120 % of dial setting Wire Spec: 75 °C […]
