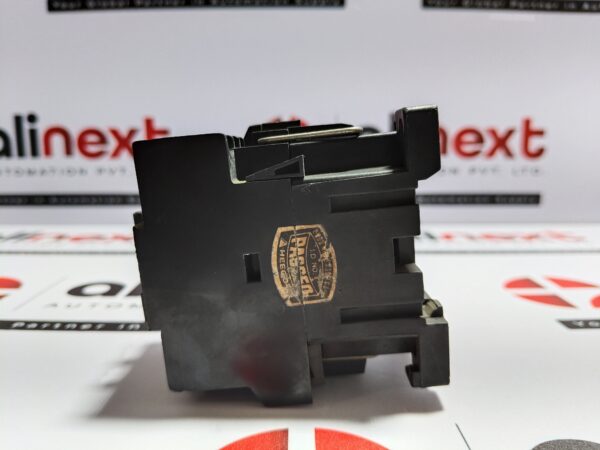

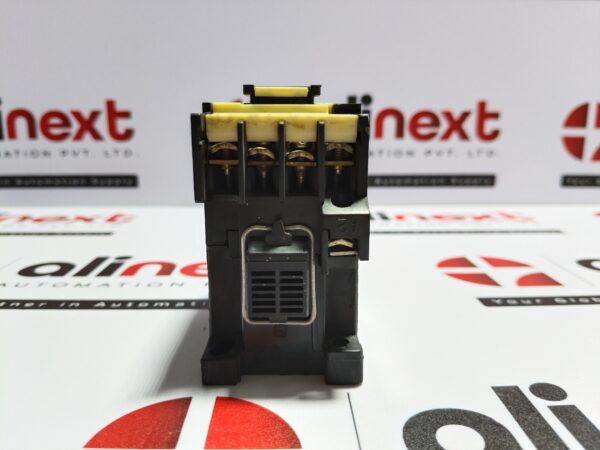

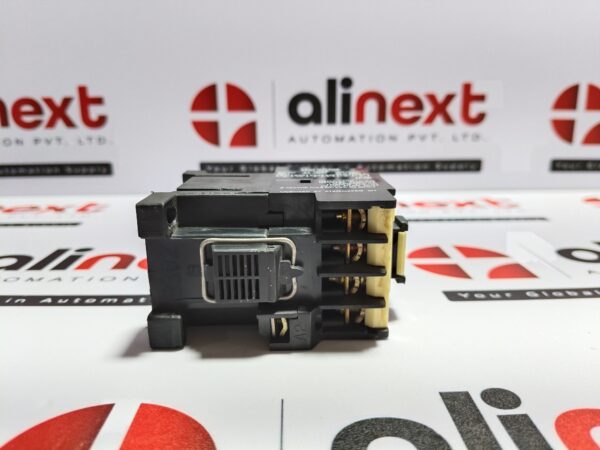

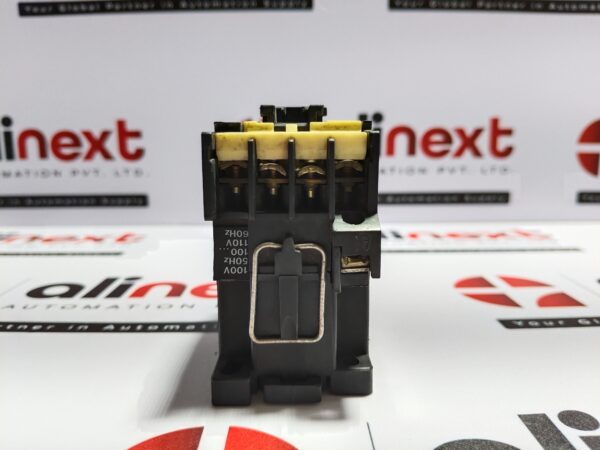

Hyundai HMX22 Control Relay HMX 22 20A 110V Coil

Hyundai HMX22 Control Relay HMX 22 20A 110V Coil

The Hyundai HMX22 is a 20A auxiliary control relay, mainly used for switching control circuits, interlocking, and signaling in industrial automation panels

Model: HMX22

Type: Control Relay / Auxiliary Contactor

Rated Current (Ie): 20A (AC1 duty)

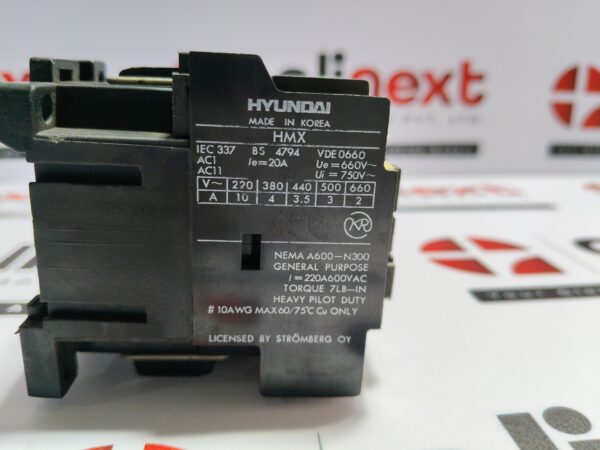

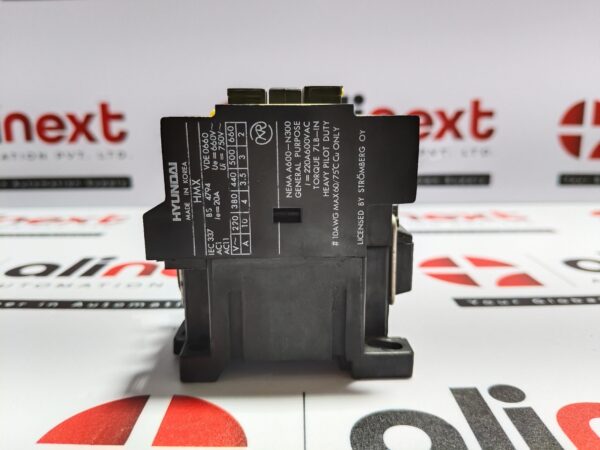

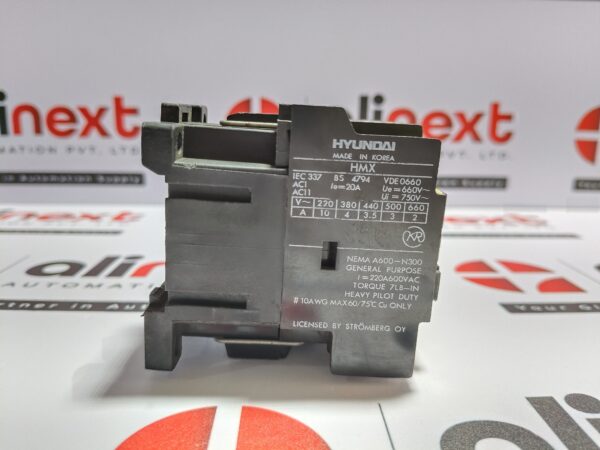

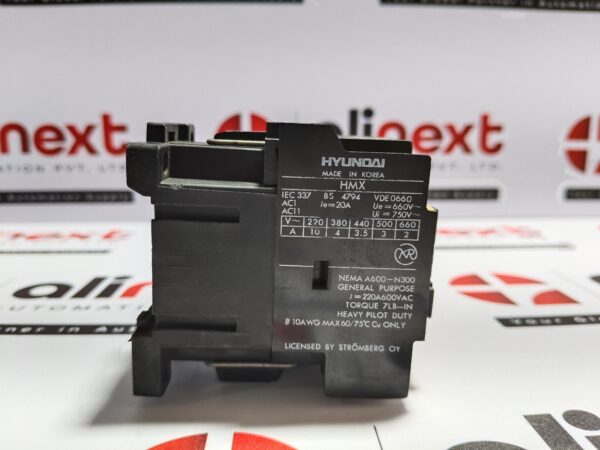

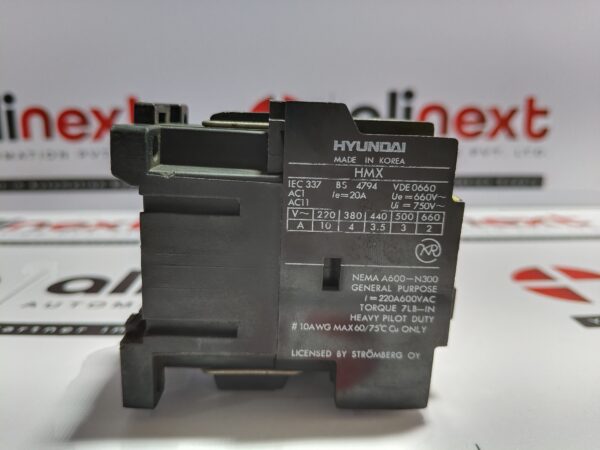

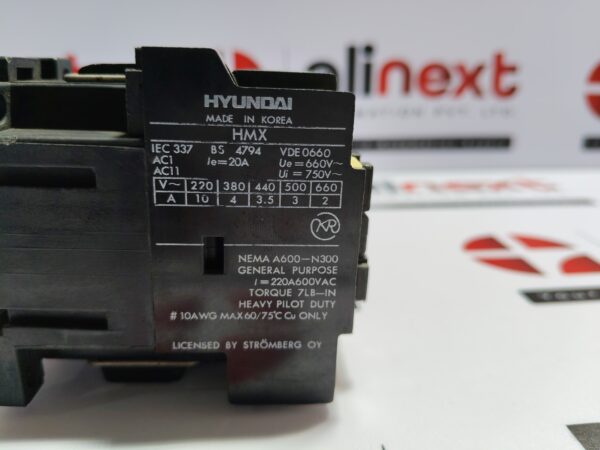

Standards: IEC 337, BS 4794, VDE 0660

Rated Insulation Voltage (Ui): 750V

Rated Operational Voltage (Ue): up to 660V AC

Utilization Category: AC1: 20A

AC15 (Control duty): depends on voltage → 220V: 10A, 380V: 4A, 440V: 3.5A, 500V: 3A, 660V: 2A

NEMA Rating: A600 – N300 (Heavy Pilot Duty)

Torque: 7 lb-in (terminal tightening)

Protection Class: IP20 (typical, depending on enclosure)

7 Pcs Available

Weight: 0.330 kgs Approx.

ref no: 273
