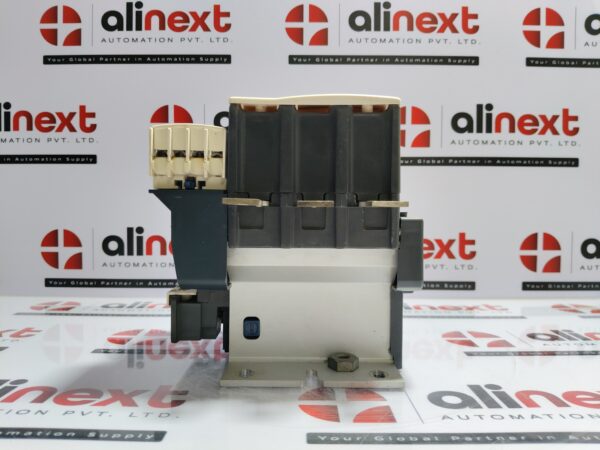

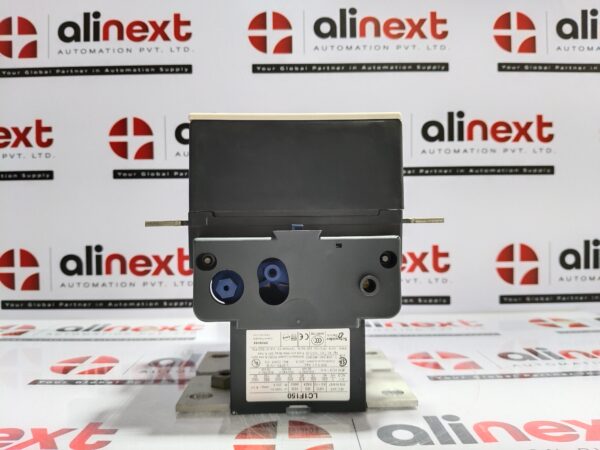

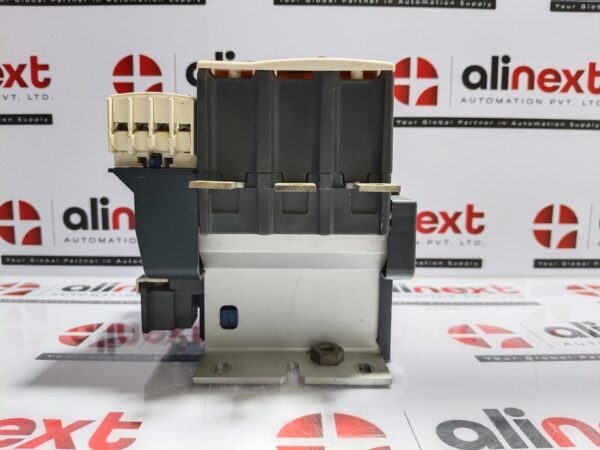

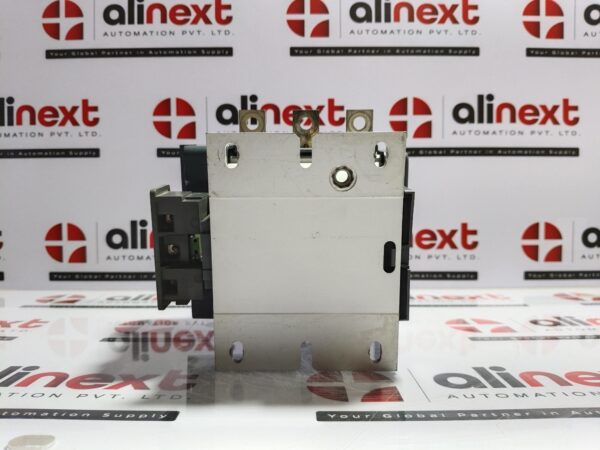

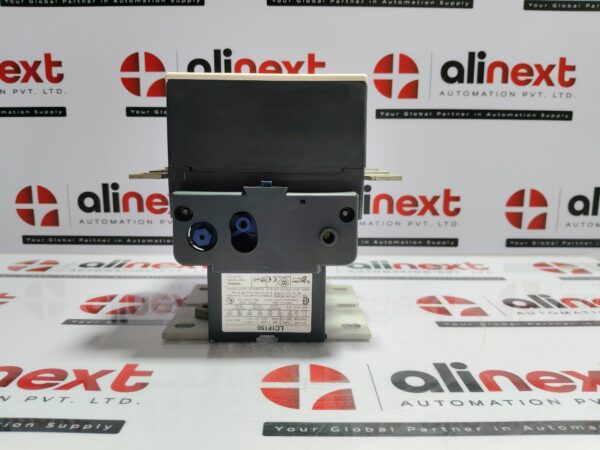

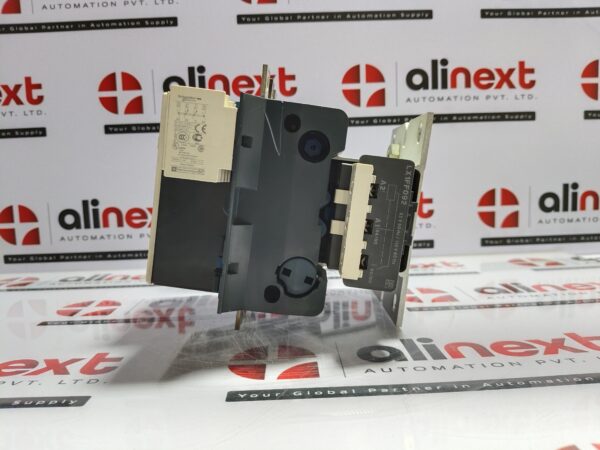

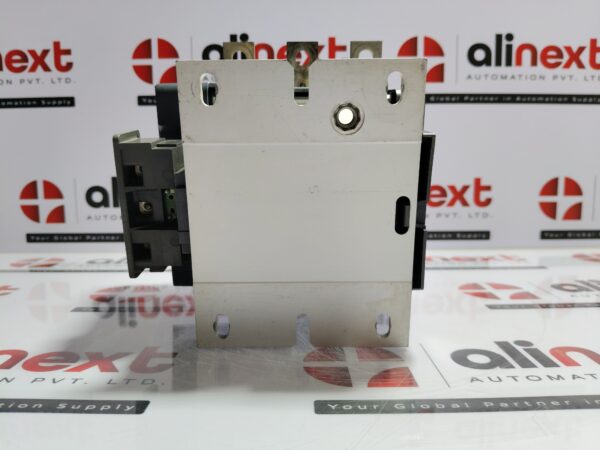

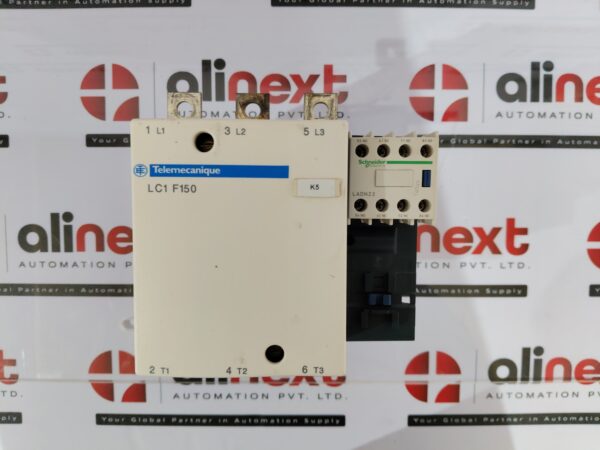

Schneider LC1F150 Contactor+LADN22+LX1FF092 Ith 250A Con.Current 200A Coil-110V

Schneider LC1F150 Contactor+LADN22+LX1FF092 Ith 250A Con.Current 200A Coil-110V

Main Contact Configuration: 3 NO power contacts (3 poles)

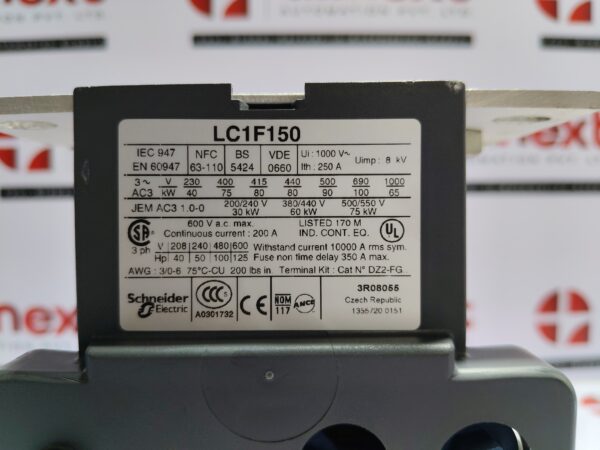

Rated Operational Current (AC-3): 150 A @ ≤ 440 V AC for LC1F150

Rated Operational Current (AC-1): 250 A @ ≤ 440 V AC (free-air, 40 °C)

Rated Operational Voltage (Ue): Up to ~ 690 V AC; AC-3 duties at 440 V, also capable at higher voltages per data sheet for LC1F150

Insulation Voltage (Ui): 1000 V AC per IEC 60947-4-1 (LC1F150)

Overvoltage Category: III

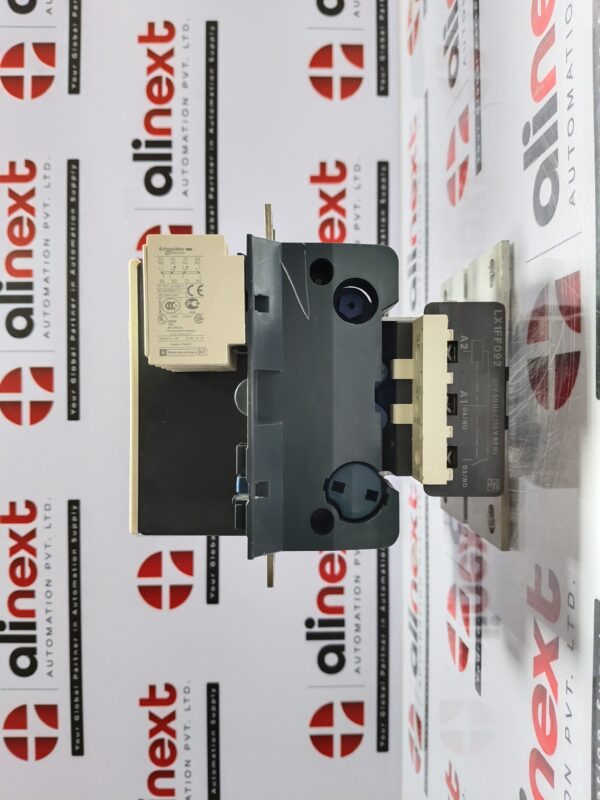

Control / Coil Voltage: With LX1FF092 coil: 110 V AC / 60 Hz; coil operates at ~0.85-1.10 × Uc typical for AC coils, up to 55°C ambient

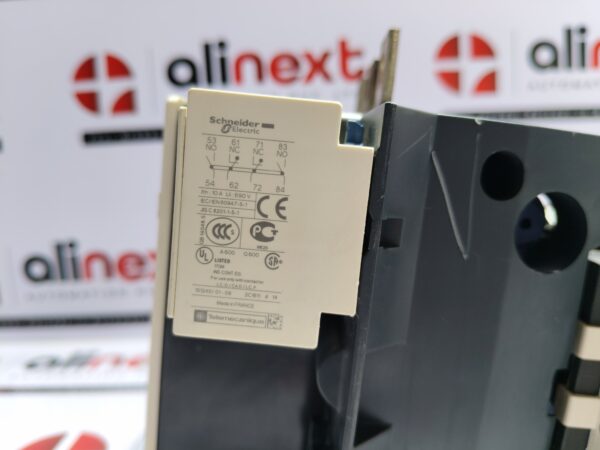

Auxiliary Contacts (LADN22) : 2 NO + 2 NC instantaneous; rated 6 A @ 120 V AC-15, ~1.04 A @ 690 V AC-15; insulation 690 V AC; thermal current ~10 A free-air (60°C)

Thermal Current (Ith) of Main Contactor : 250 A in free air, 40 °C ambient (for LC1F150)

Short-Time Withstand / Making Capacity: Making current: ~1500 A (IEC 60947-4-1), Short-time withstand current ~1200 A for 10 s, lower ratings for longer durations

Power / Motor Load Ratings: Approximate motor power capability (AC-3): ~75-80 kW at ~380-440 V AC; lower at lower voltages, higher possible at 660-690 V AC depending on duty and environment

 Mechanical / Environmental: IP2X protection on front (with shrouds)

Certifications: IEC 60947-1 & 60947-4-1, plus various marine-/industrial approvals in different regions for LC1F150; LADN22 has CB / UL / CSA etc.

1 Pcs Available

Weight: 3.620 kgs Approx.

ref no: 313
