Schneider LC1F115 Contactor+LADN22+LX1FF092 Ith 200A Con.Current 175A Coil 110V

Schneider LC1F115 Contactor+LADN22+LX1FF092 Ith 200A Con.Current 175A Coil 110V

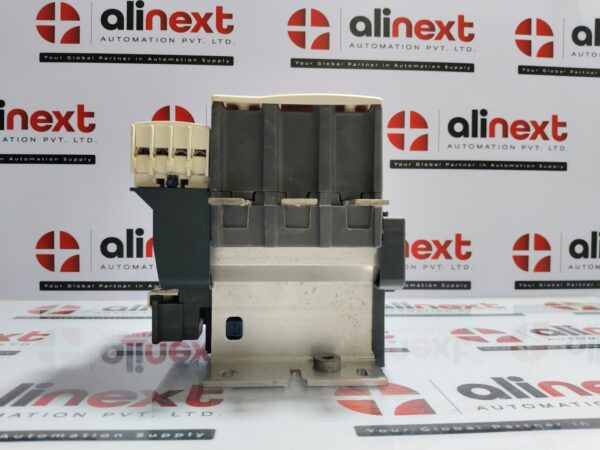

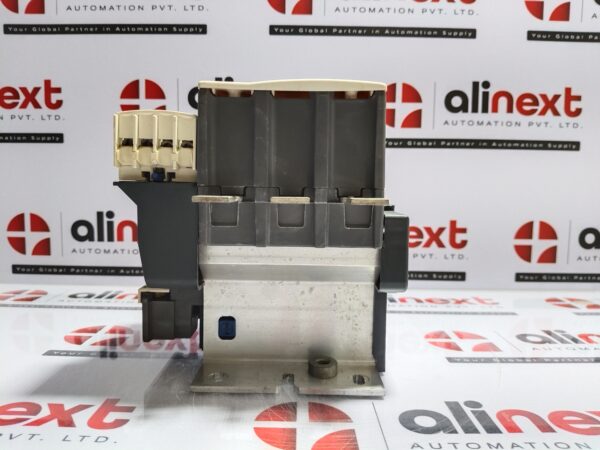

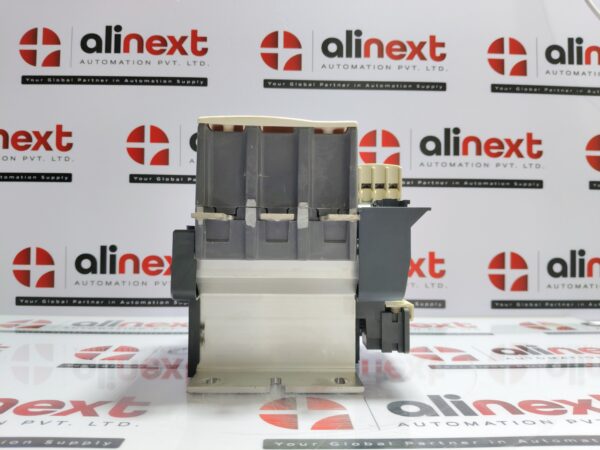

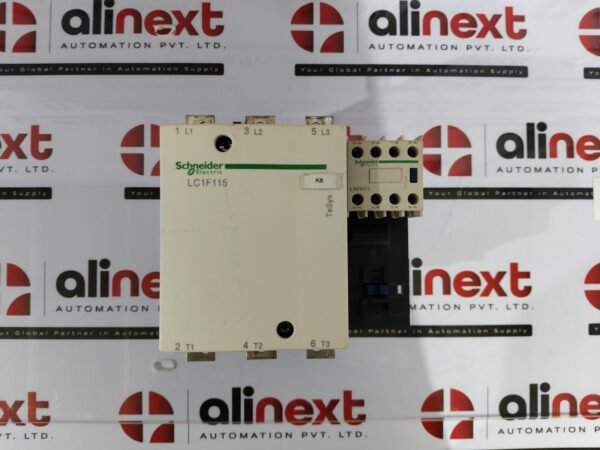

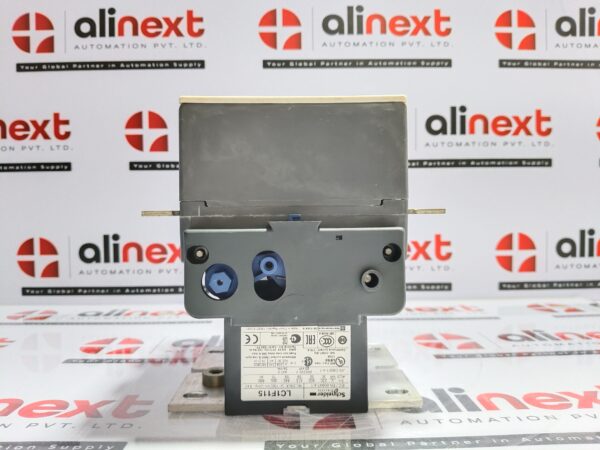

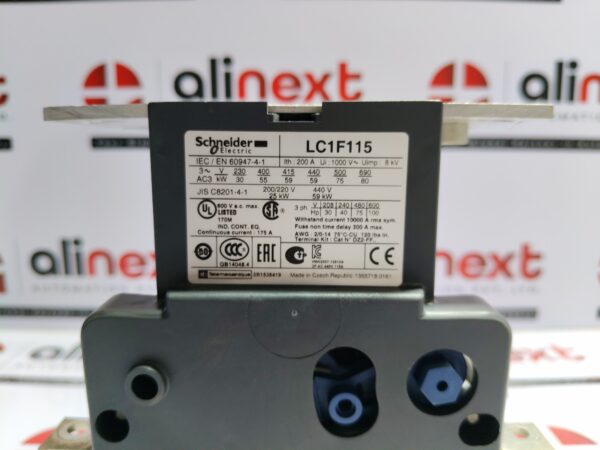

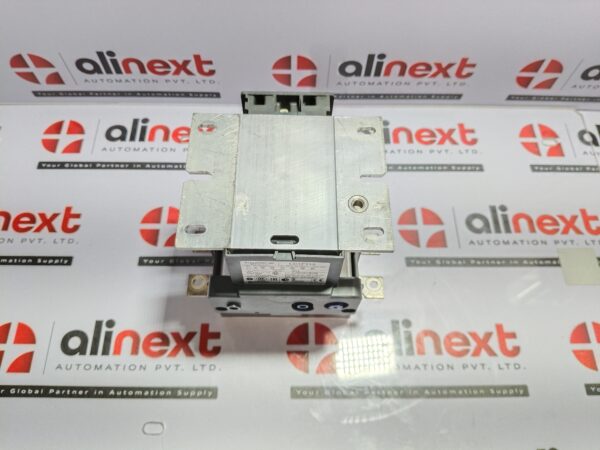

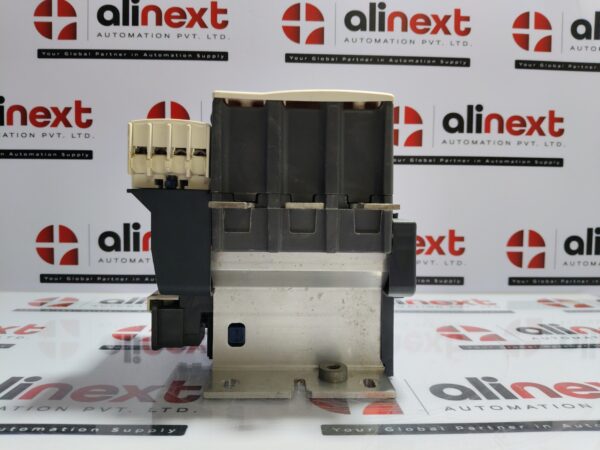

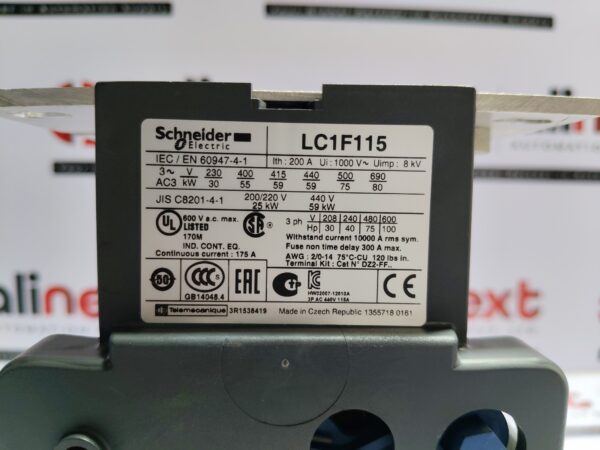

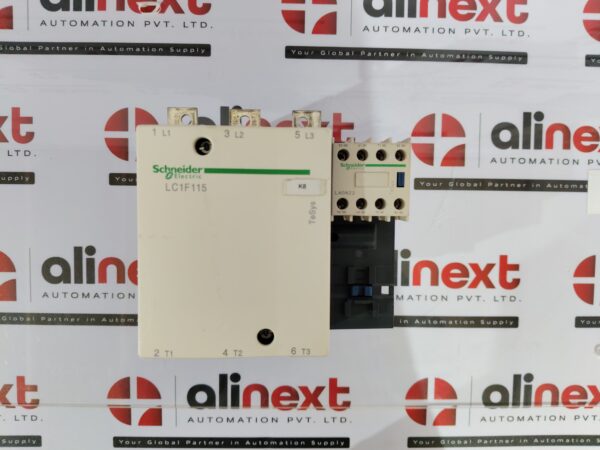

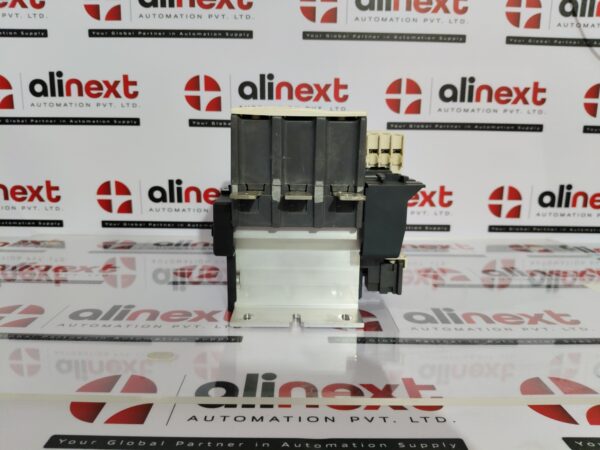

1. Contactor LC1F115:

Device name / Type: TeSys F contator, 3 poles (3 NO), AC-3 category

Rated operational current (AC-3): 115 A at ≤ 440V AC, up to ~55 °C temperature

Rated current (AC-1): 200 A at ≤ 440V AC, ≤ 40 °C

Rated voltage (Ue): Up to 1000 V AC / up to ~460 V DC depending on coil type

Impulse withstands voltage (Uimp): 8 kV

Thermal current rating (Ith): 200 A (free air thermal current, ≤ 40 °C)

2. Auxiliary Contact Block LADN22:

Contact Composition: 2 NO + 2 NC instantaneous auxiliary contacts

Rated Current: 10 A at AC up to 690V

Mounting / Terminals: Front-mount; screw clamp terminals

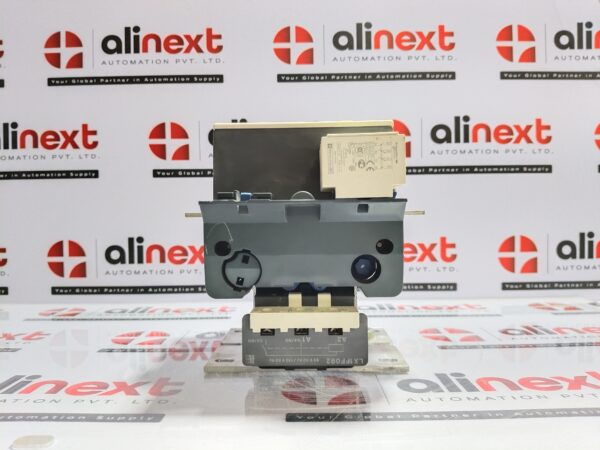

3. Coil LX1FF092:

Coil Voltage / Type: 110 V AC, 60 Hz coil

Operating / Duty Info: High operating rate; typical control voltage tolerance ~ 0.85-1.1 × Uc; works up to 55 °C ambient

1 Pcs Available

Weight: 3.640 kgs Approx.

ref no: 312
