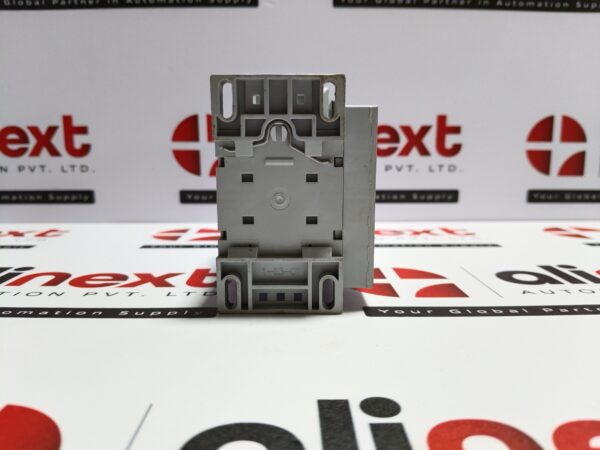

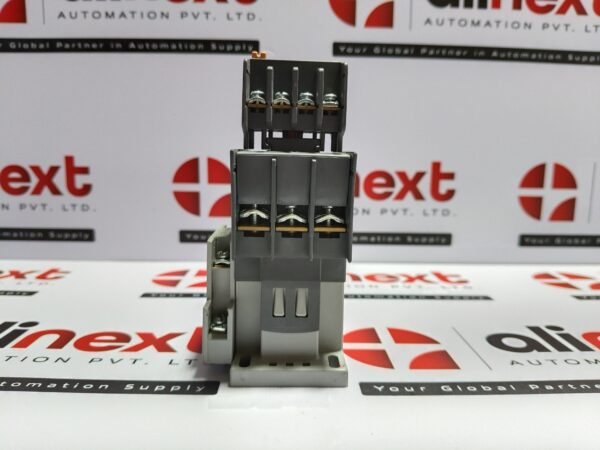

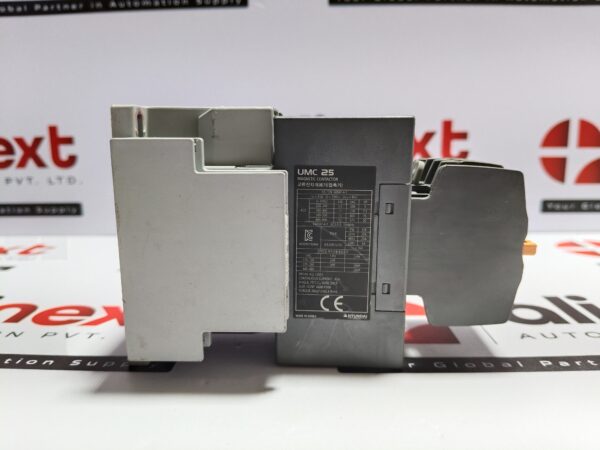

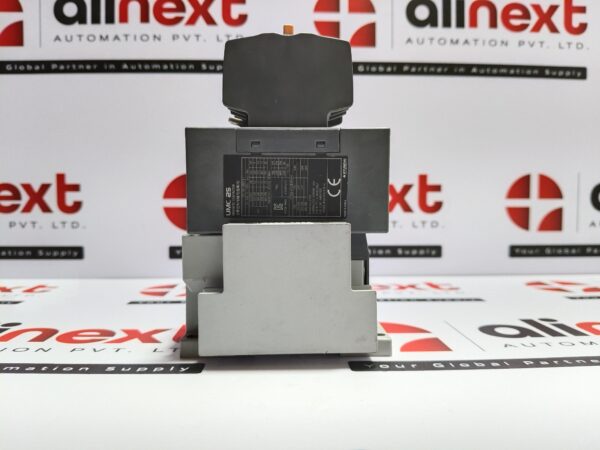

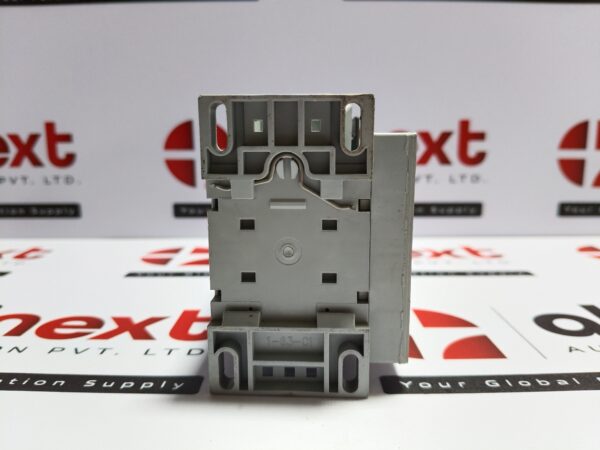

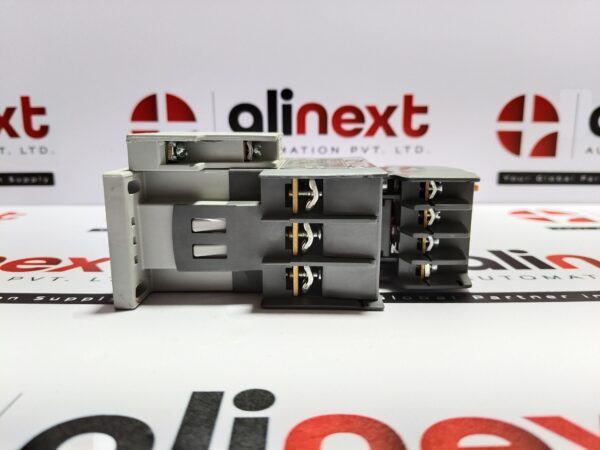

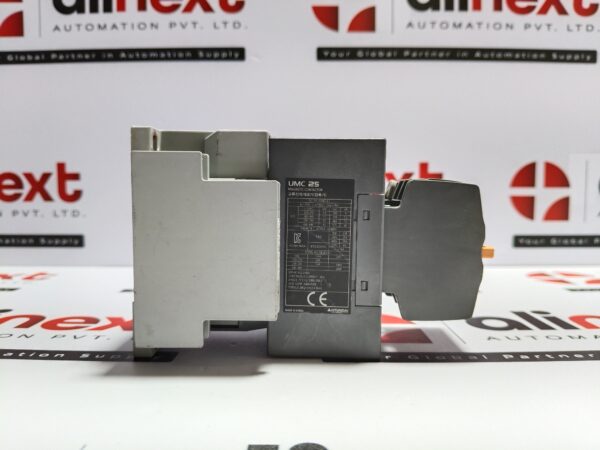

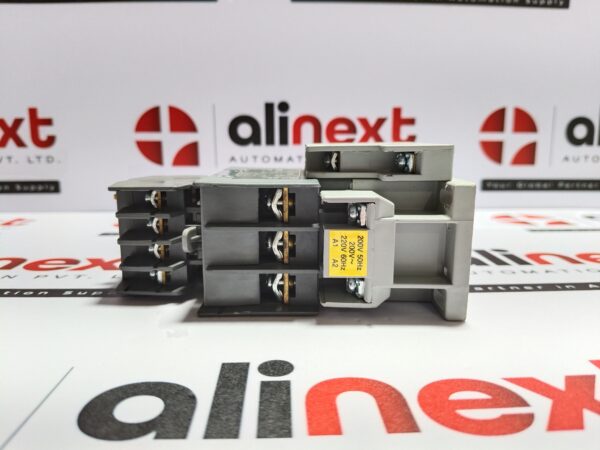

Hyundai UMC 25 Contactor with Auxiliary Contact Block Coil-220V

Hyundai UMC 25 Contactor with Auxiliary Contact Block Coil-220V

1. Main Contactor: Hyundai UMC 25

Type: Magnetic Contactor

Rated Operational Current (Ie): 45A

Utilization Category: AC-3 (IEC/EN 60947-4-1)

Rated Insulation Voltage (Ui): 750V

Impulse Withstand Voltage (Uimp): 8kV

Operating Voltage (Ue) & Power Ratings (AC-3, 50/60Hz): 220–240V → 5.5 kW (≈ 7.5 HP), 380–400V → 11 kW (≈ 15 HP), 440–460V → 15 kW (≈ 20 HP), 500–550V → 18.5 kW (≈ 25 HP), 660–690V → 22 kW (≈ 30 HP)

Continuous Current: 40A

Auxiliary Circuit (A600 / P300): AC 6A at 220V, DC 1.1A at 125V

Coil Voltage Options: 110–120V / 220–240V / 440–480V AC

Torque Requirement (terminal): 2.6 Nm (≈ 26 kgf·cm)

Standards: IEC/EN 60947-4-1, CE, KC

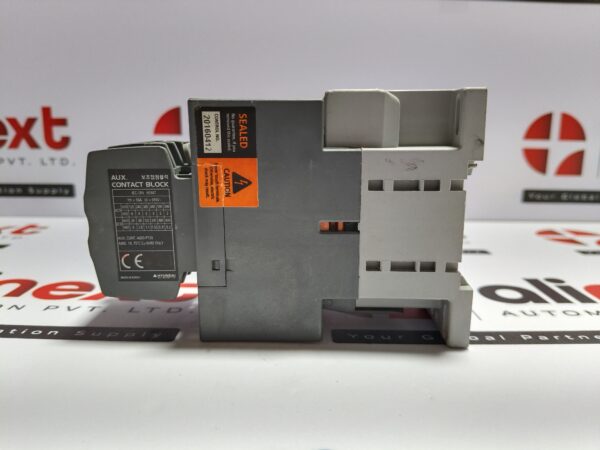

2. Auxiliary Contact Block (mounted on the side)

Type: Hyundai Aux. Contact Block (A600 / P150 rating)

Rated Current: 16A (Ui 690V)

Contact Configuration (depending on block): 1NO + 1NC or 2NO / 2NC

Usage: For signaling, interlocking, or auxiliary circuit switching

1 Pcs Available

Weight: 0.490 kgs Approx.

ref no: 298
