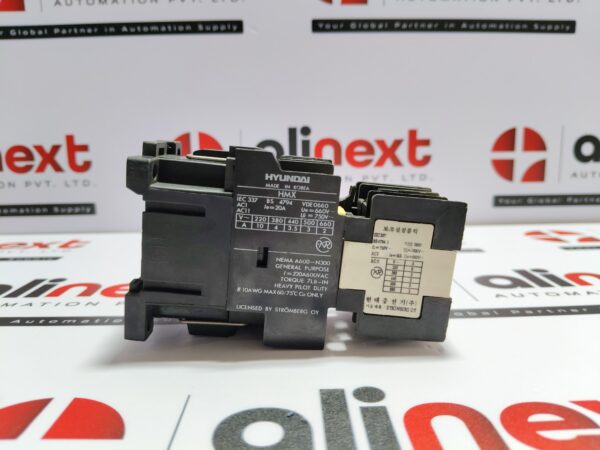

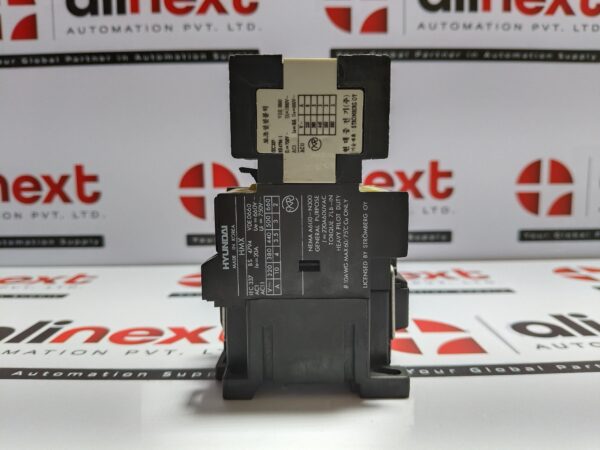

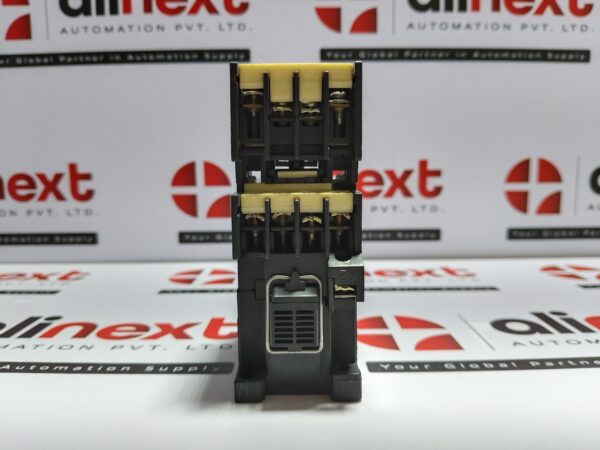

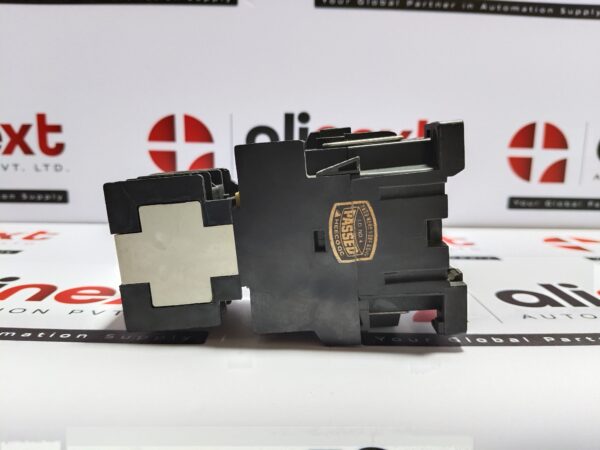

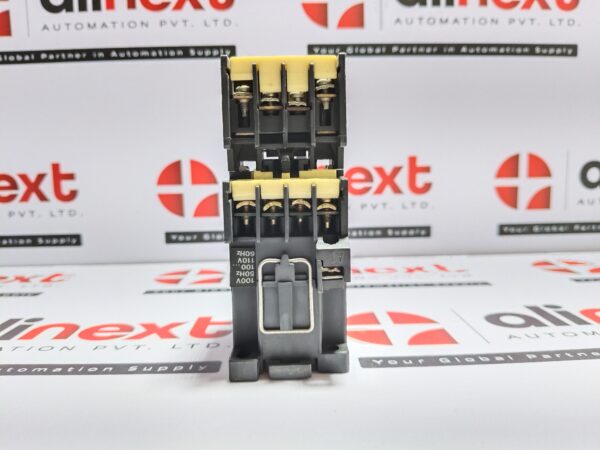

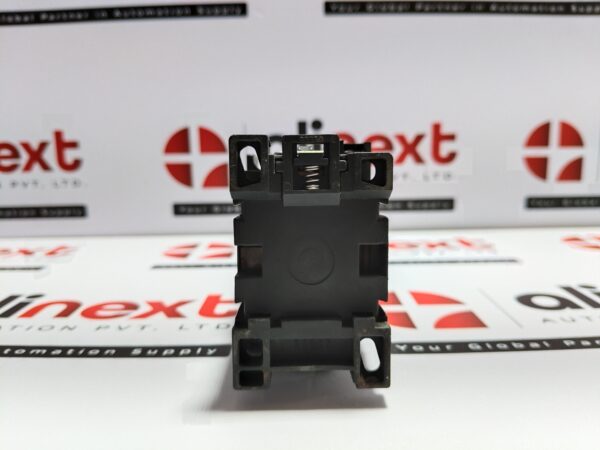

Hyundai Contactor HMX 20A with Auxiliary Contact Block HAB22 16A Coil-110V

Hyundai Contactor HMX 20A with Auxiliary Contact Block HAB22 16A Coil-110V

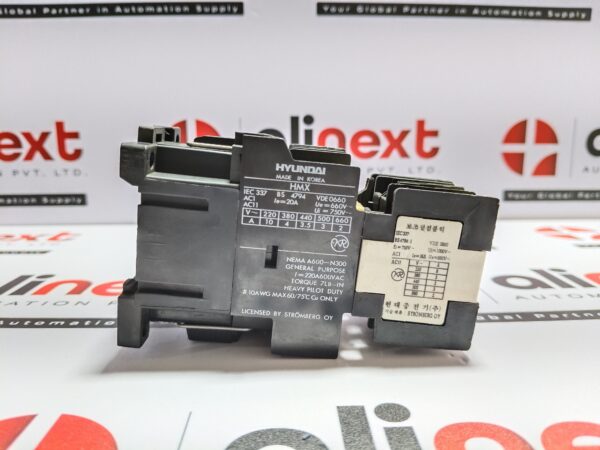

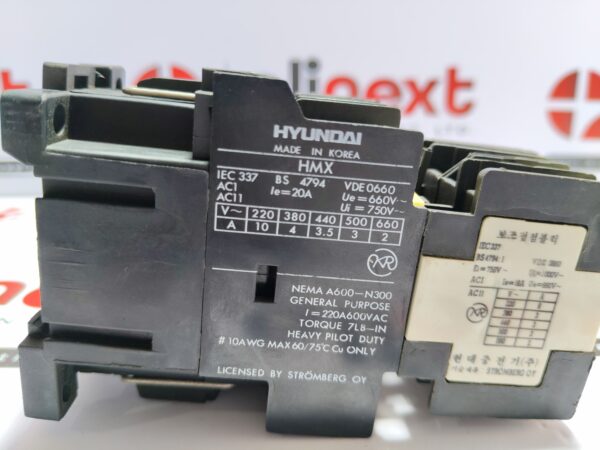

1. Main Contactor (Hyundai HMX)

Type: Electromagnetic Contactor

Rated Operational Current (Ie): 20 A (AC1 duty)

Utilization Category: AC1 / AC11

Rated Insulation Voltage (Ui): 750 V

Rated Operational Voltage (Ue): up to 660 V

AC ratings (approx.): 220 V → 10 A, 380 V → 4 A, 440 V → 3.5 A, 500 V → 3 A, 660 V → 2 A

Standards: IEC 337, VDE 0660, BS 4794

NEMA Rating: A600–N300

General Purpose Current: 20 A @ 600 VAC

Torque: 7 lb-in (mounting)

Duty: Heavy Pilot Duty (#10 AWG, 60/75°C copper only)

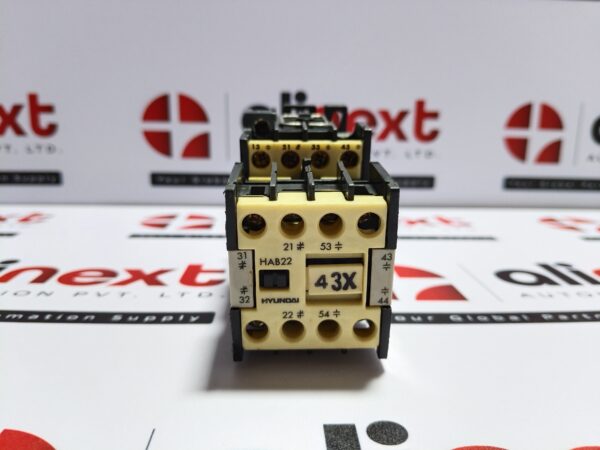

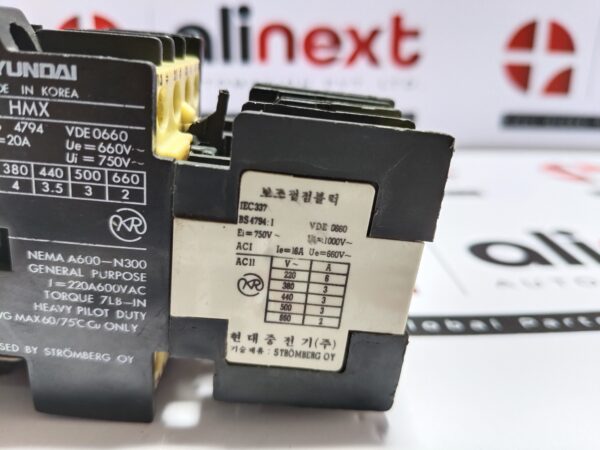

2. Auxiliary Contact Block (Hyundai HAB22)

Type: Front-mounted auxiliary block

Contacts Provided: 2 NO + 2 NC

Markings: 21-22, 31-32 (NC), 43-44, 53-54 (NO)

Function: Provides auxiliary signaling/feedback for the main contactor operation (used for interlocks, control circuits, or signaling)

2 Pcs Available

Weight: 0.400 kgs Approx.

ref no: 279
