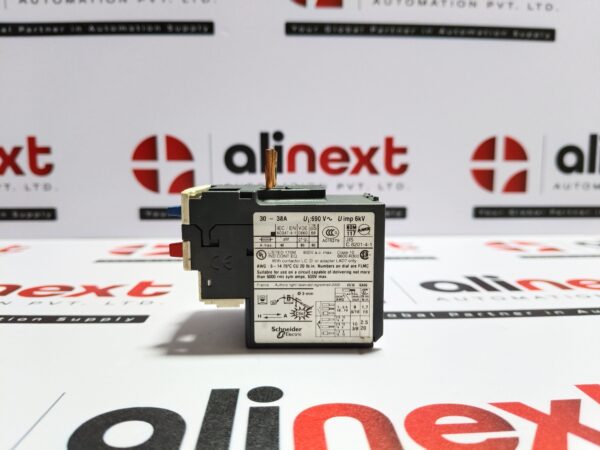

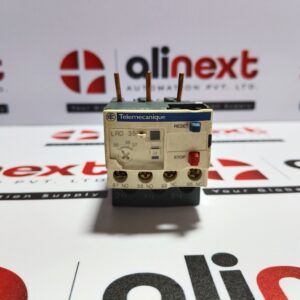

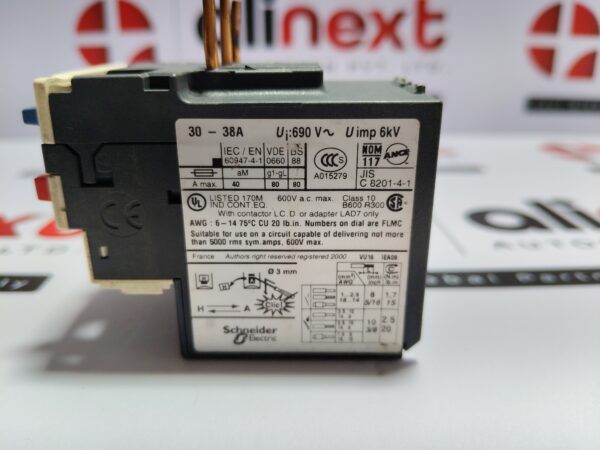

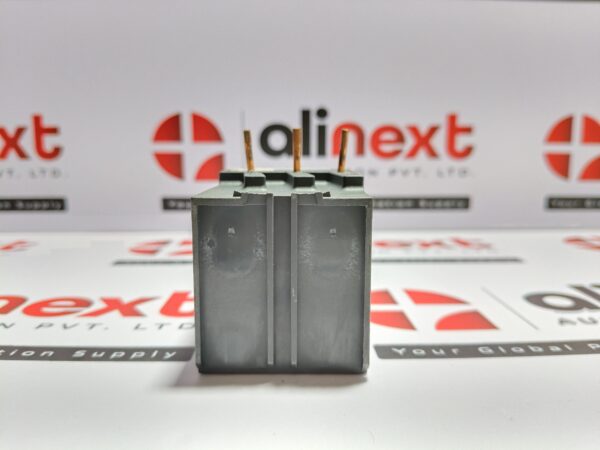

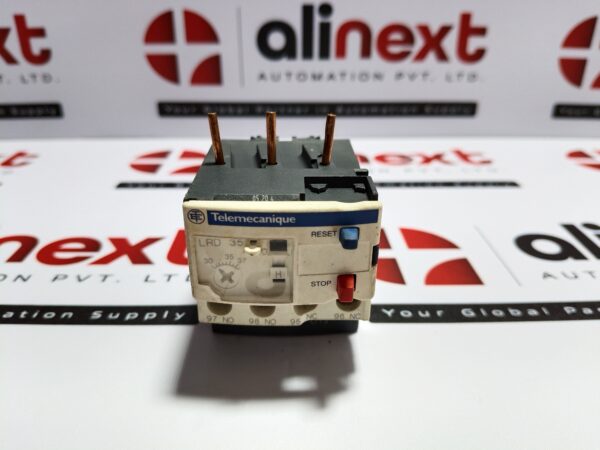

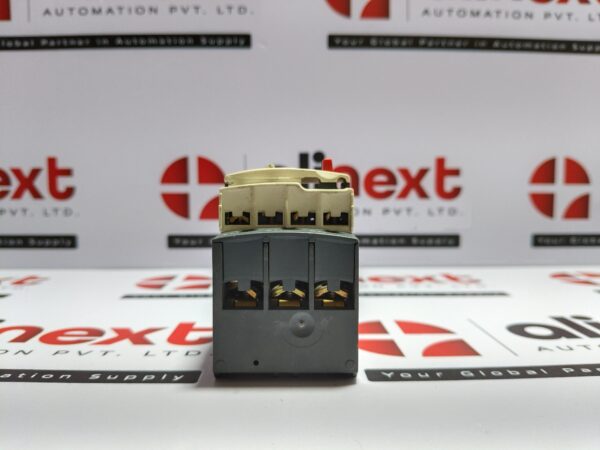

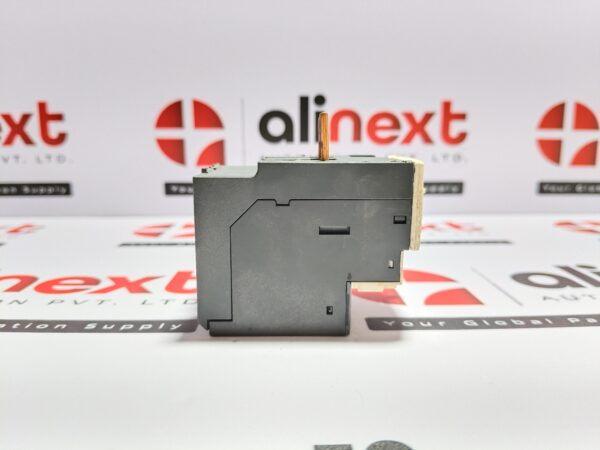

Telemecanique/ Schneider LRD 35 Thermal Overload Relay LRD35 30-38A

Overload Relay Type: Thermal, ambient-compensated, bimetallic

Current Setting Range: 30-38 A

Trip Class: Class 10A

Number of Poles: 3 poles (for motor protection)

Phase Loss Sensitivity: Yes; designed to detect single-phase failure or unbalance

Contacts (Auxiliary / Alarm): 1 NO + 1 NC contact for alarm/trip signaling

Reset Type: Manual or Automatic reset versions available

Rated Insulation Voltage (Ui): 690 V (IEC); other ratings ~600 V AC depending region

Operating Voltage for Motors : Up to ~400-690 V AC depending on installation, suitable for motor protection at those voltages

Control / Auxiliary Circuit Current Rating: 10 A for the NO/NC contacts

Mounting: Direct mount under Schneider contactors (e.g. LC1D32/38) or standalone mounting with accessories; clamp or threaded terminals

Standards & Certifications: IEC 60947 family; UL, CSA, etc

1 Pcs Available

Weight: 0.120 kgs Approx.

ref no: 290
