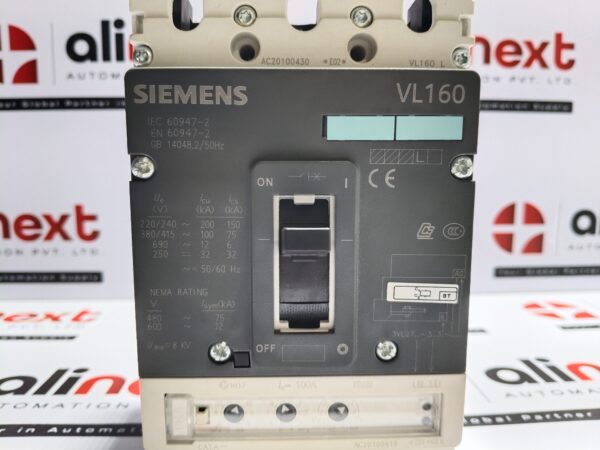

Siemens 3VL2710-3SE36-8TA0 Circuit Breaker VL160L 3-Pole 100A

Siemens 3VL2710-3SE36-8TA0 Circuit Breaker VL160L 3-Pole 100A

Series / Frame: Siemens 3VL, VL160L (“L” = very high breaking / interrupting capacity)

Model / Variant: 3VL2710-3SE36-8TA0

Poles: 3 (three phases)

Rated Current (In / Ir): 100 A continuous current rating

Rated Operational Voltage (Ue): Up to 690 V AC nominal main circuit

Insulation Voltage (Ui): ~ 800 V AC

Impulse Withstand / Surge Voltage (Uimp): 8 kV

Breaking / Short-Circuit Capacity (Icu): 100 kA at 415 V AC for high capacity variants (VL160L “SE36 / SL36 / TF36” types)

Service Breaking Capacity (Ics): Dependent on voltage; lower than Icu but still high (e.g. ~ 75 kA at 415 V) in similar models.

Trip / Protection Type: Solid-state / electronic trip unit, with LSI (Long-time, Short-time, Instantaneous) protection in the SE36 family.

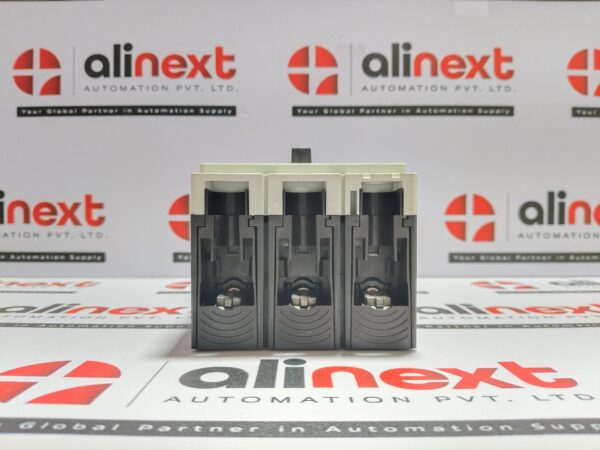

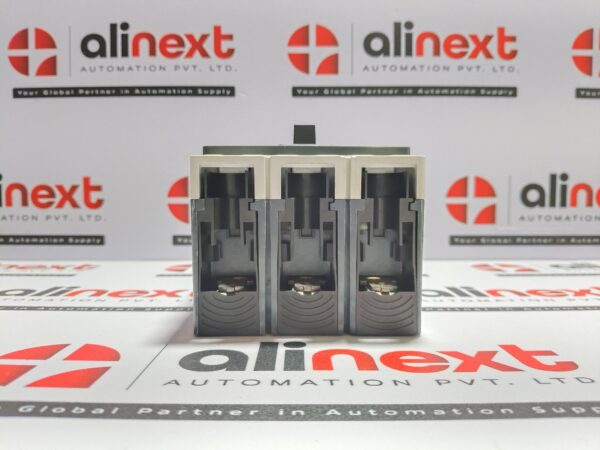

Terminal / Connection: Bolt-on / fixed mounting; screw-type terminals; conductor cross-section for main conductors ~ 2.5-95 mm², depending on variant.

Ambient / Mechanical: Operating temperature up to ~ 70 °C; IP20 protection; mechanical service life & endurance on par with other VL160L breakers (20,000 mechanical cycles, ~10,000 electrical)

1 Pcs Available

Weight: 2.390 kgs Approx.

ref no: 333
