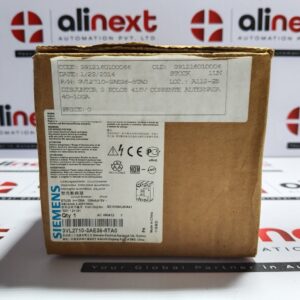

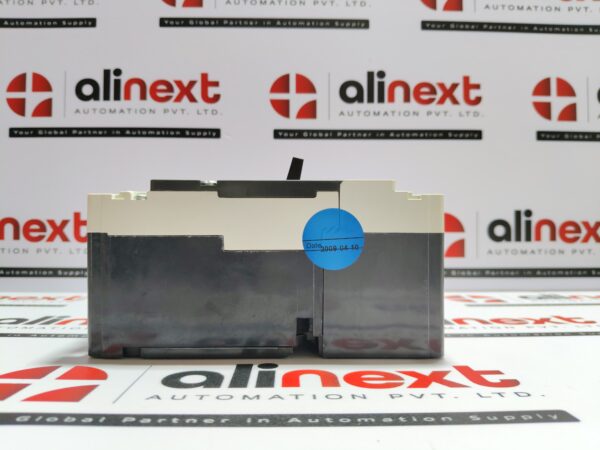

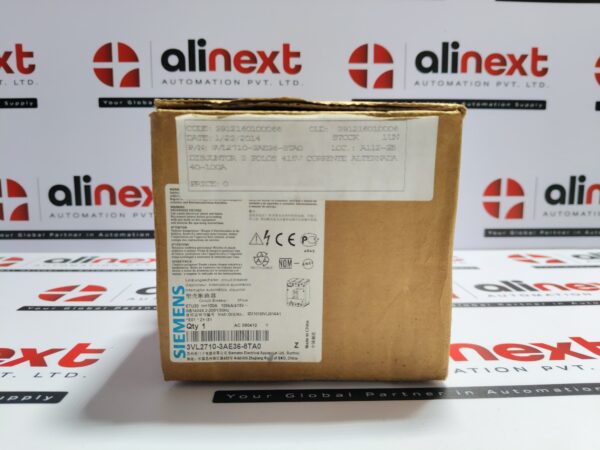

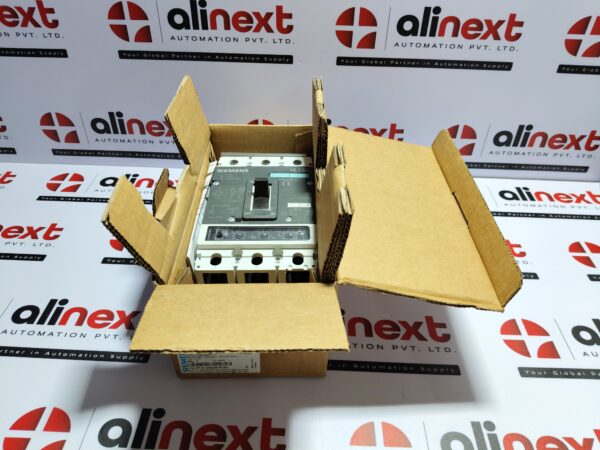

Siemens 3VL2710-3AE36-8TA0 Circuit Breaker VL160L 3-Pole 100A

Siemens 3VL2710-3AE36-8TA0 Circuit Breaker VL160L 3-Pole 100A

Manufacturer: Siemens AG

Series / Family: 3VL range, VL160L (“L” = very high breaking / interrupting capacity)

Poles: 3-pole (phases only)

Rated Current (In / Ir): 100 A continuous

Rated Operational Voltage Ue: Up to ~ 415 V AC nominal; can handle up to ~ 690 V AC for main circuit in many designs

Insulation Voltage (Ui): ~ 800 V AC

Surge / Impulse Withstand (Uimp): ~ 8 kV

Breaking Capacity (Icu): Likely ~ 100 kA at 415 V AC (VL160L “36” variants tend to have that rating)

Service Breaking Capacity (Ics): Slightly lower, but still high; exact value depends on trim / accessories.

Trip / Protection Type: Electronic / thermal-magnetic combination; overload + short-circuit protection. Possibly includes auxiliary / alarm contacts since “-8TA0” might indicate that.

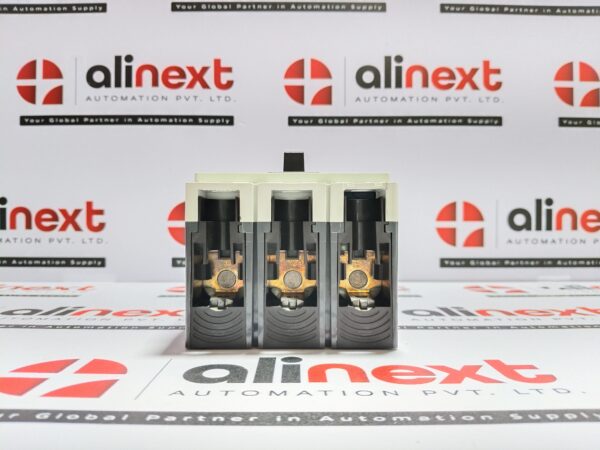

Connection / Terminals: Solid conductors: ~ 2.5-95 mm²; stranded conductors similarly sized depending on terminal design; screw type terminals

Ambient Temperature Range: Operating roughly -25 °C to +70 °C; storage wider (-40 to +80 °C) in similar models

Mechanical / Electrical Endurance: Mechanical ops ~ 20,000 cycles; electrical life ~ 10,000 cycles (typical for these breakers)

Protection Class: IP20 for terminal / front; needs enclosure if used in more severe environment

1 Pcs Available

Weight: 2.530 kgs Approx.

ref no: 334
