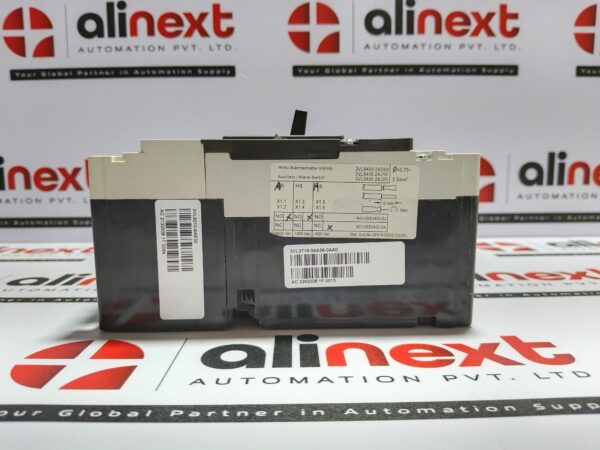

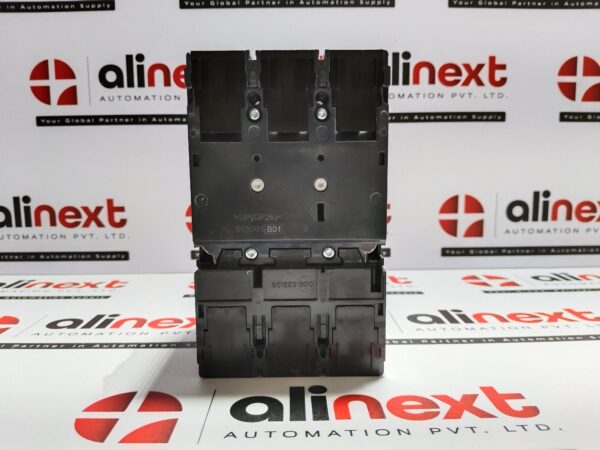

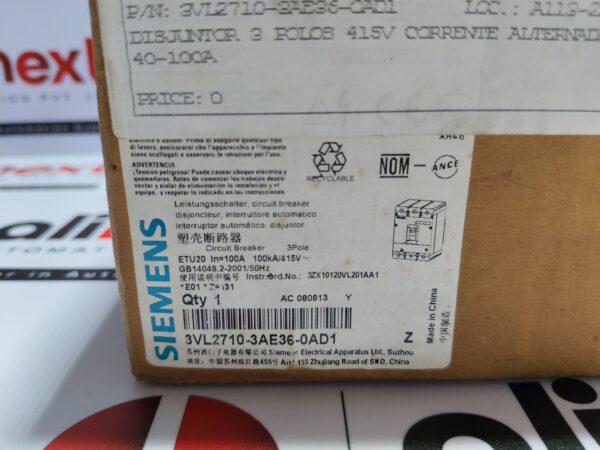

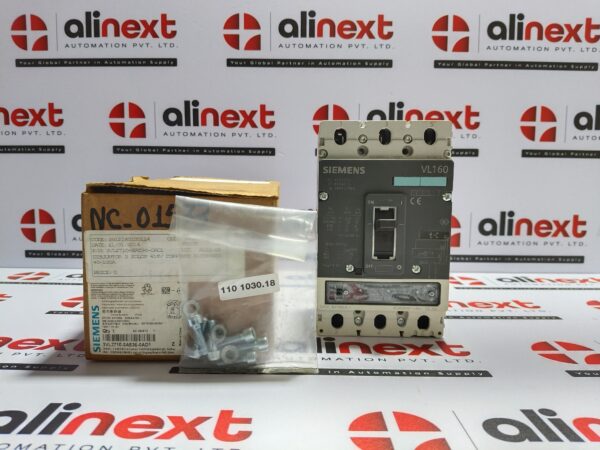

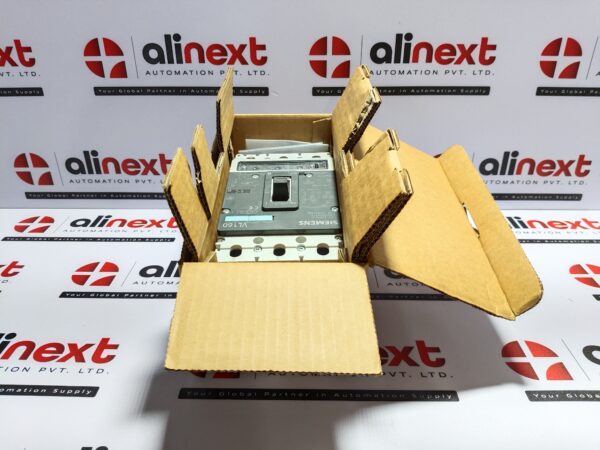

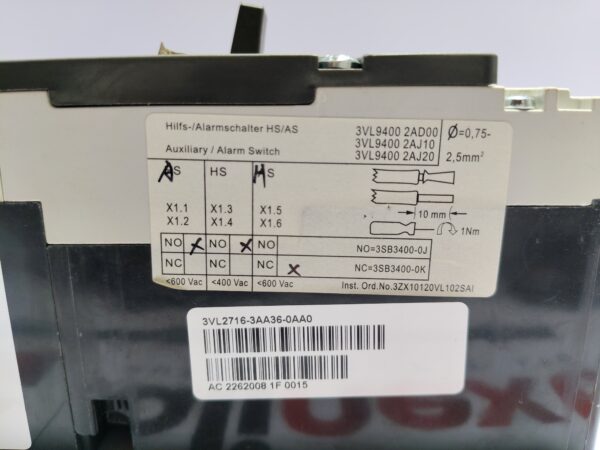

Siemens 3VL2710-3AE36-0AD1 Circuit Breaker VL160L 3-Pole 100A

Siemens 3VL2710-3AE36-0AD1 Circuit Breaker VL160L 3-Pole 100A

Manufacturer: Siemens AG

Series / Frame: 3VL / VL160L (“L” indicates very high breaking capacity)

Poles: 3-pole (just phases)

Rated Current (In / Ir): 100 A continuous

Rated Operational Voltage (Ue): Up to 690 V AC for main circuit

Insulation Voltage (Ui): ~ 800 V AC

Surge / Impulse Withstand (Uimp): ~ 8 kV

Breaking Capacity (Icu): Very high; for VL160L 100 A, typically • 100 kA at 415 V AC or very high rating depending on exact sub-variant / accessory.

Service Breaking Capacity (Ics): Slightly lower than Icu; exact value depends on variant, may be ~ 85-90% of Icu at certain voltages.

Trip / Overcurrent Release: Thermal-magnetic or electronic with long-time + instantaneous short-circuit protection.

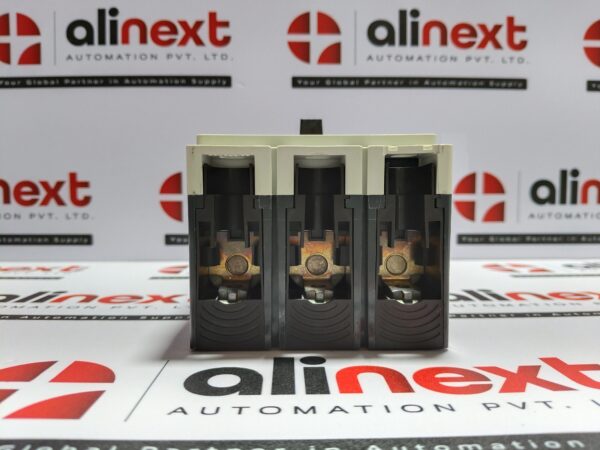

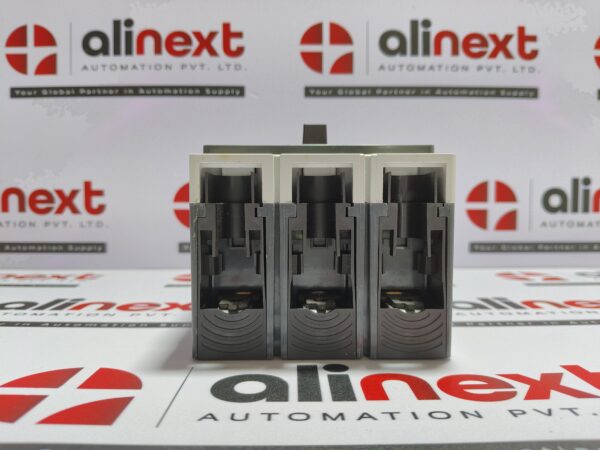

Terminals / Connections: Screw terminals; solid conductor range ~2.5-95 mm²; stranded conductors allowed (size depending on accessory)

Ambient & Mechanical: Operating −- around 0 to ~70 °C; storage ± higher range; fixed mounting; IP20; mechanical & electrical life in thousands of switching cycles.

1 Pcs Available

Weight: 2.640 kgs Approx.

ref no: 331
