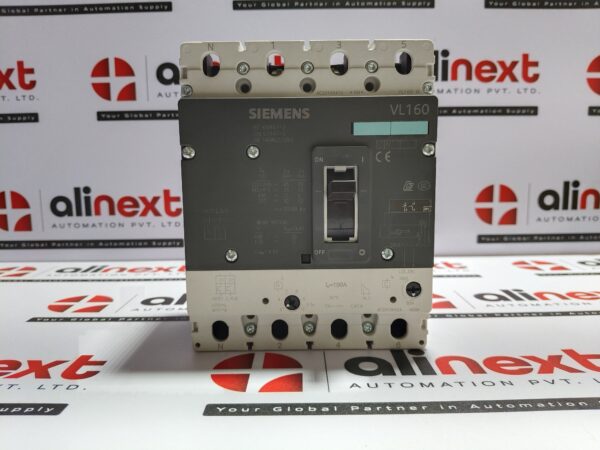

Siemens 3VL2710-1EM46-0AD1 Circuit Breaker VL160N 4-Pole 100A

Siemens 3VL2710-1EM46-0AD1 Circuit Breaker VL160N 4-Pole 100A

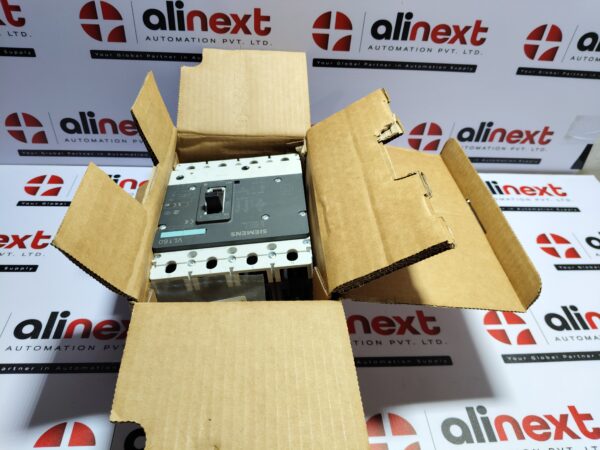

Product: Siemens 3VL2710-1EM46-0AD1 (VL160N frame)

Series / Family: VL160N / 3VL2 (standard breaking capacity “N” type)

Poles: 4-pole (3 phases + neutral)

Rated (Continuous) Current (In / Ir): 100 A

Rated Operational Voltage (Ue): Up to 690 V AC for main circuit

Insulation Voltage (Ui): ~ 800 V AC

Surge / Impulse Withstand Voltage (Uimp): 8 kV

Breaking Capacity (Icu) at 415 V AC: 55 kA

Service Breaking Capacity (Ics): Also ~ 55 kA at 415 V AC for this variant; lower at higher voltages per datasheet table.

Overload / Short-Circuit Protection Type: TM type overcurrent release (thermal + magnetic) with adjustable overload pickup (full-scale up to 100 A) and instantaneous short circuit trip in two fixed stages (500 A and 1000 A)

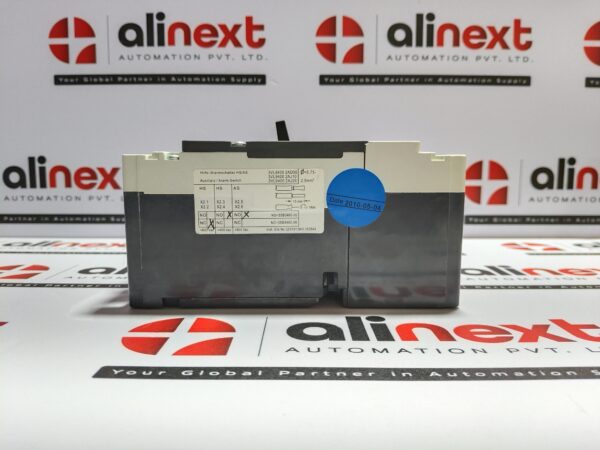

Connection / TerminalsScrew-type terminals; fixed mounting, front side connections; no auxiliary switch or alarm by default in base “-0AA0” version (similarly “-AD1” likely similar with accessory)

Temperature / Ambient: Operation: 0 °C to +70 °C; derating above ~50-55 °C; storage: −40 °C to +80 °C

Mechanical / Electrical Endurance: Mechanical life ~20,000 operations; Electrical endurance ~10,000 operations for rated current breakings etc.

Protection Class: IP20 for the enclosure / terminals

1 Pcs Available

Weight: 3.140 kgs Approx.

ref no: 335
