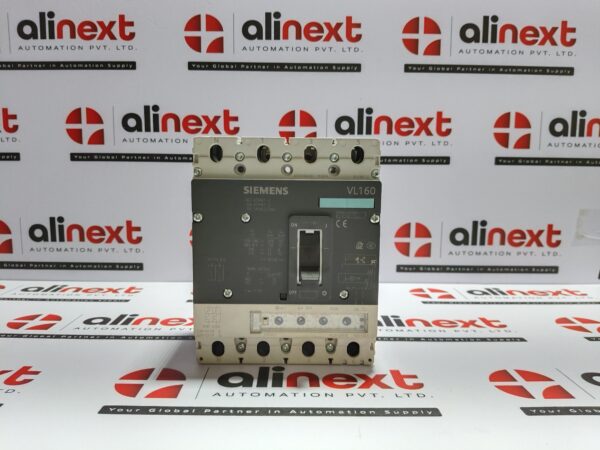

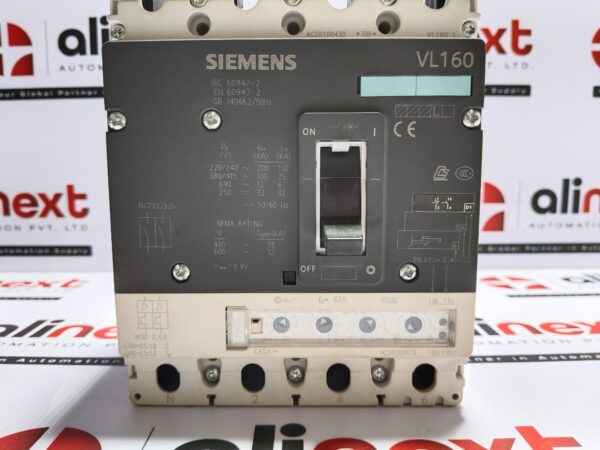

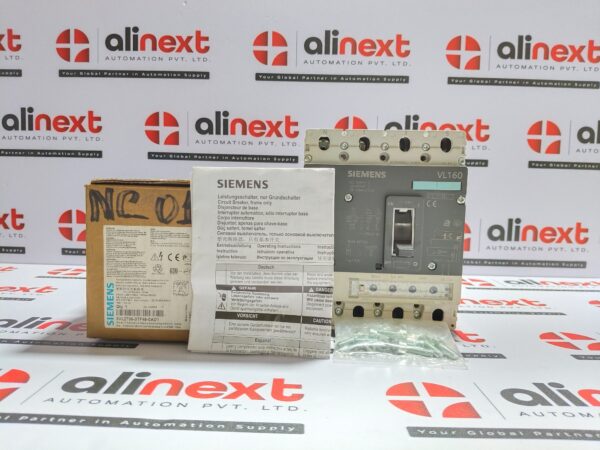

Siemens 3VL2706-3TF46-0AD1 Circuit Breaker VL160L 4-Pole 63A

Siemens 3VL2706-3TF46-0AD1 Circuit Breaker VL160L 4-Pole 63A

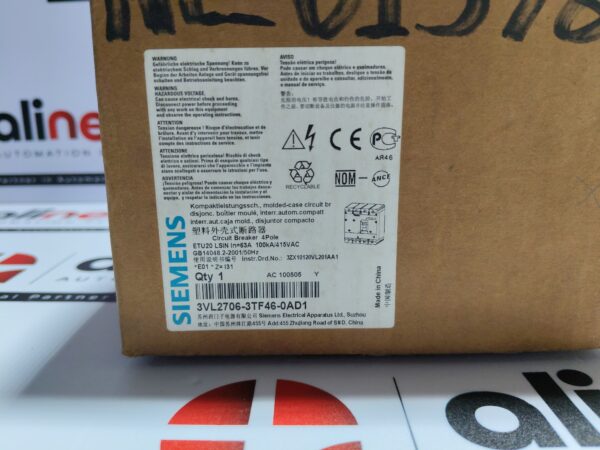

Manufacturer: Siemens AG

Series / Family : 3VL / VL160L (Very High Breaking Capacity “L” class)

Model / Part: 3VL2706-3TF46-0AD1 (your variant) / base 3VL2706-3TF46-0AA0 for reference

Poles: 4-pole (3 phases + neutral)

Rated Current (Ir / In): 63 A continuous current at up to 50-55 °C; minor derating above that.

Rated Operational Voltage (Ue): Up to 690 V AC (main circuit)

Insulation Voltage (Ui): 800 V AC

Impulse Withstand / Surge (Uimp): 8 kV

Breaking Capacity (Icu): 100 kA at 415 V AC

Service Breaking Capacity (Ics): ~ 75 kA at 415 V AC

Overload & Short-Circuit Protection: Electronic trip unit “ETU20” with Thermal + Short-Time/Instantaneous (LSI) setting. Short circuit pickup ~ 693 A (instantaneous) for base model; overload adjustable up to 63 A.

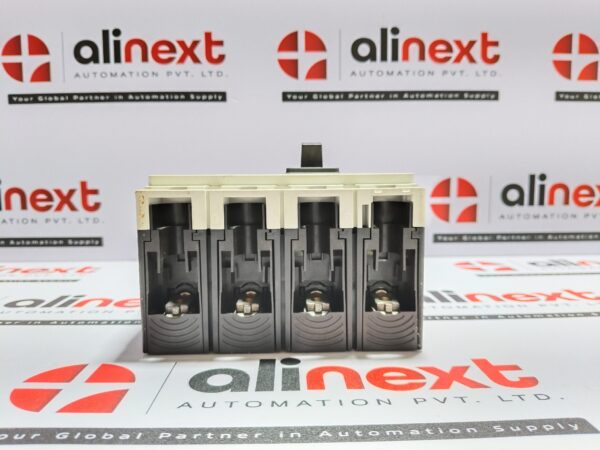

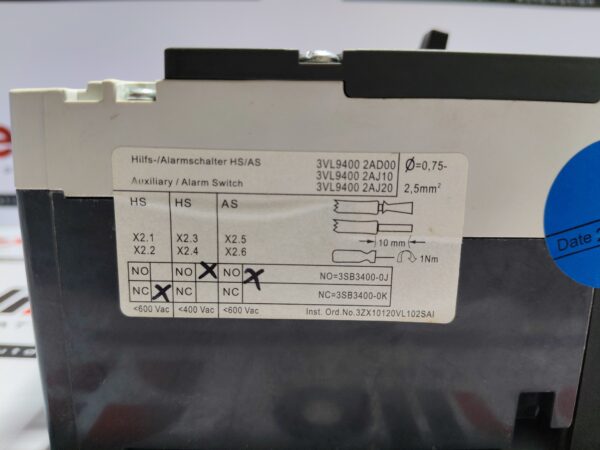

Connection Terminals: Screw-type; solid conductor 2.5-95 mm²; flexible / stranded with core end ~2.5-50 mm²

Frequency: AC operation at 50 / 60 Hz normal; rated operational at both.

Operating Ambient Temp: -25 °C to +70 °C (storage also lower/higher range)

Degree of Protection: IP20 (front / terminal protection)

Mechanical / Electrical Endurance: Mechanical switching cycles ~ 20,000; electrical cycles ~ 10,000

1 Pcs Available

Weight: 3.110 kgs Approx.

ref no: 330
