Siemens 3VL2706-1EM46-0AD1 Circuit Breaker VL160N 4-Pole 63A

Siemens 3VL2706-1EM46-0AD1 Circuit Breaker VL160N 4-Pole 63A

Model / Type: Siemens 3VL2706-1EM46-0AD1 (“VL160N” series)

Frame / Series: VL160N (Siemens 3VL line)

Rated Current (In / Ir): 63 A (line protection)

Trip Unit Type: Electronic / Thermal-Magnetic Trip Unit “TM” (Overload + Short-Circuit)

Number of Poles: 4-pole version (including Neutral)

Rated Breaking Capacity (Icu): 55 kA at 415 V AC

Overload / Short-Circuit Protection Range: Overload & Short-circuit; rated for LI (adjustable) In = 50-63 A

Terminal Type : Screw terminals; neutral pole protected (4P unit)

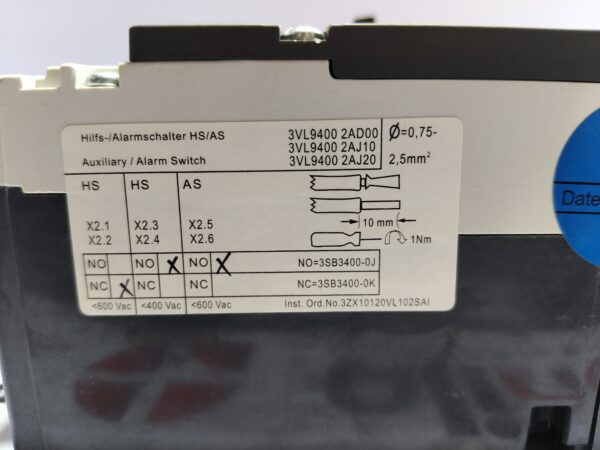

Auxiliary Features: Without auxiliary/alarm switch; without auxiliary release in many versions

6 Pcs Available

Weight: 3.110 kgs Approx.

ref no: 322, 328
