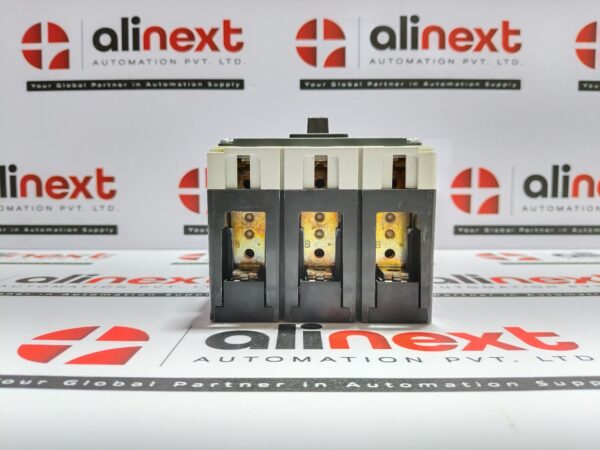

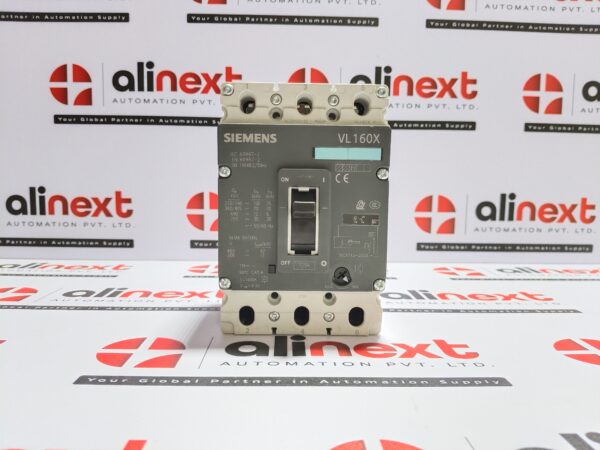

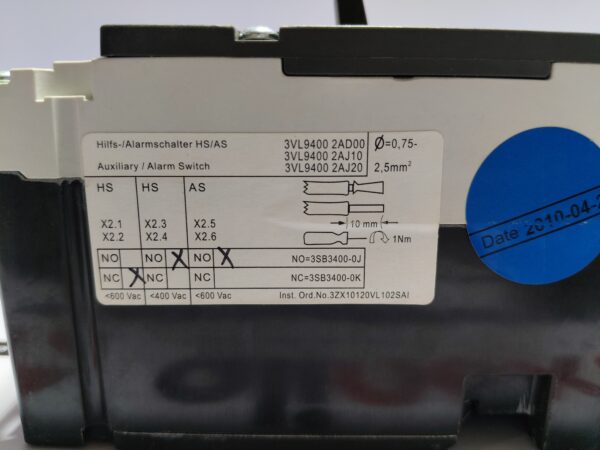

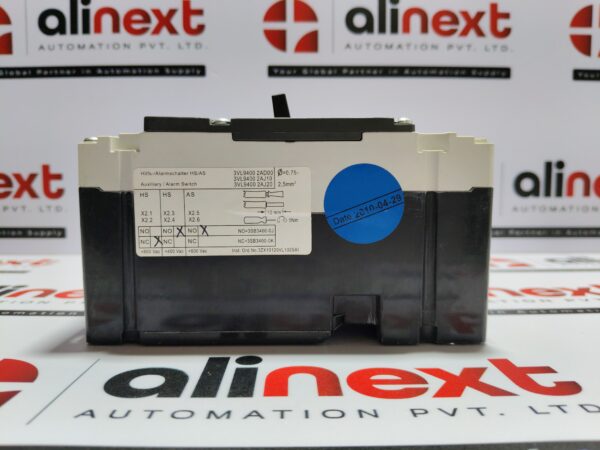

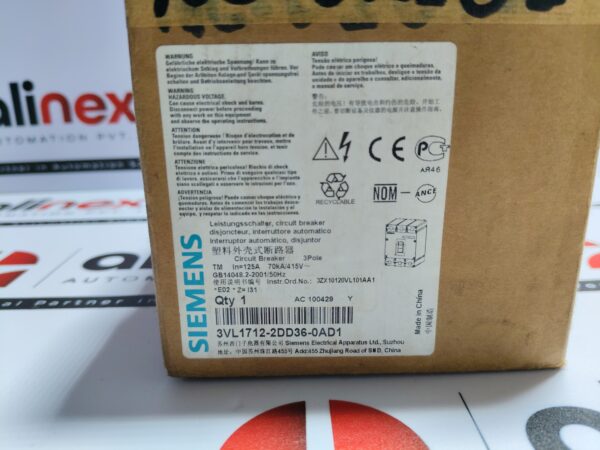

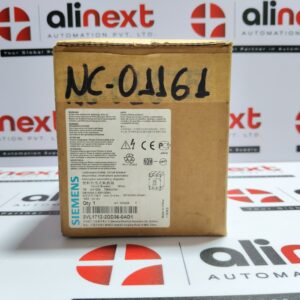

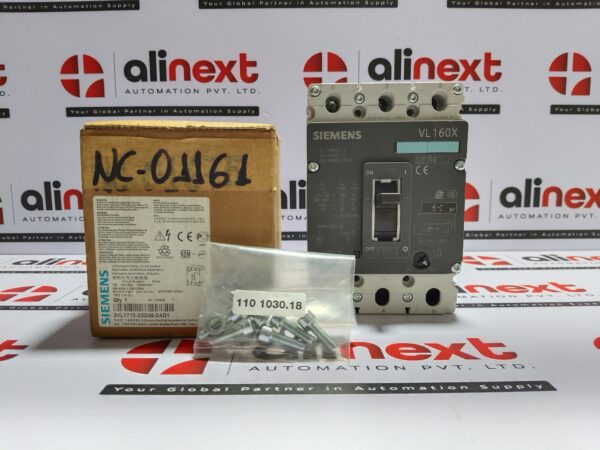

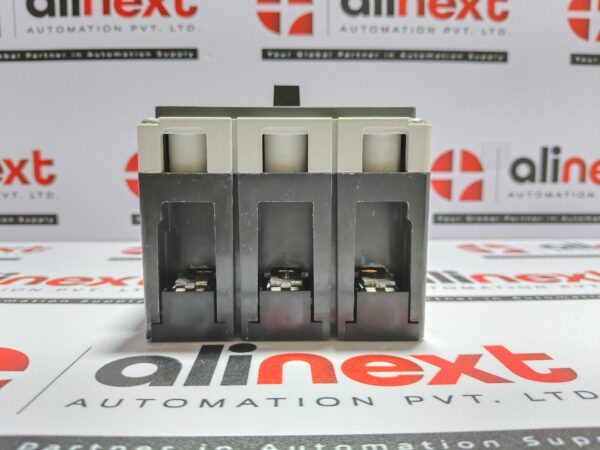

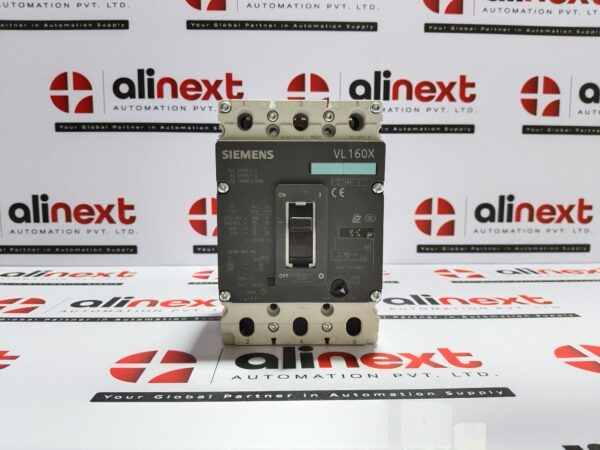

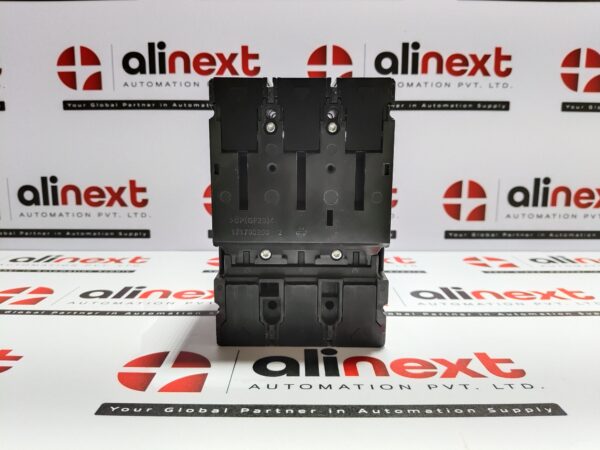

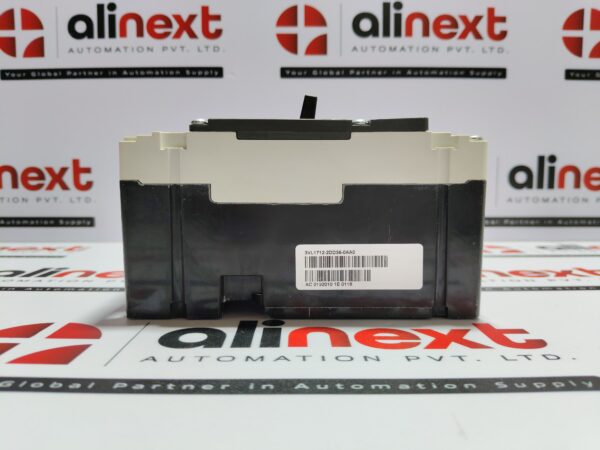

Siemens 3VL1712-2DD36-0AD1 Circuit Breaker VL160X H 3-Pole 125A

Siemens 3VL1712-2DD36-0AD1 Circuit Breaker VL160X H 3-Pole 125A

Poles: 3 (three phases)

Rated Current (In / Ir): 125 A (continuous)

Break Capacity (Ultimate, Icu) at 415 V AC: 70 kA (High breaking capacity “H” version)

Rated Operational / Maximum Voltage (Ue): Up to 690 V AC

Insulation Voltage (Ui): ~ 800 V AC

Surge / Impulse Withstand (Uimp): 8 kV

Overload / Short-Circuit Protection: Overload: thermal (LI), Instantaneous short-circuit: fixed at 1000 A pick-up (for short-circuit protection)

Operating Frequency: 50 / 60 Hz; rated normal AC operation at both.

Operating Temperature: Rated current maintained up to ~50 °C; above that derating.

Protection Class / Enclosure: IP20 (standard front / terminal protection)

Mechanical Electrical Endurance: Mechanical life ~ 20,000 operations; electrical endurance ~ 10,000 operations.

1 Pcs Available

Weight: 2.020 kgs Approx.

ref no: 332
