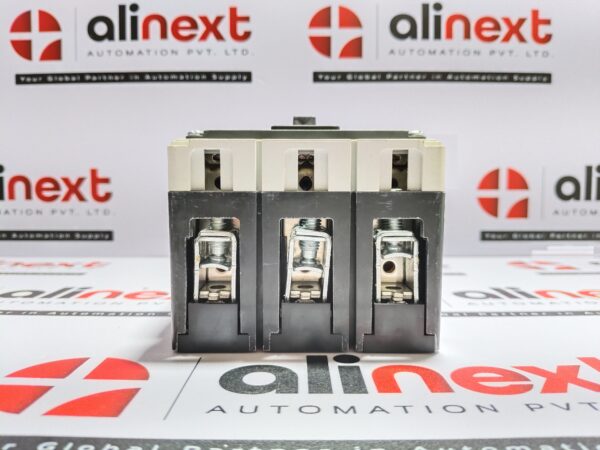

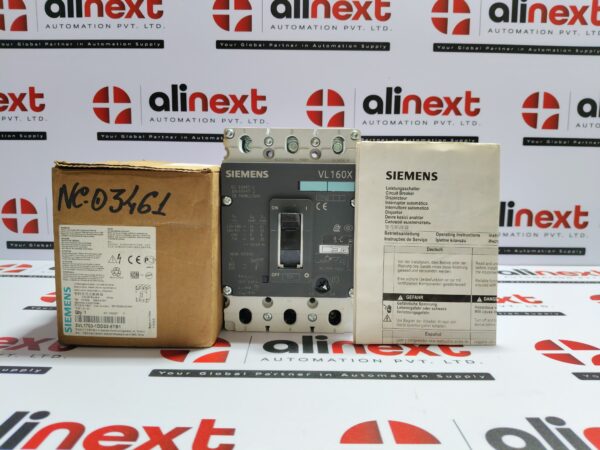

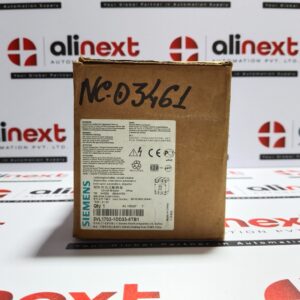

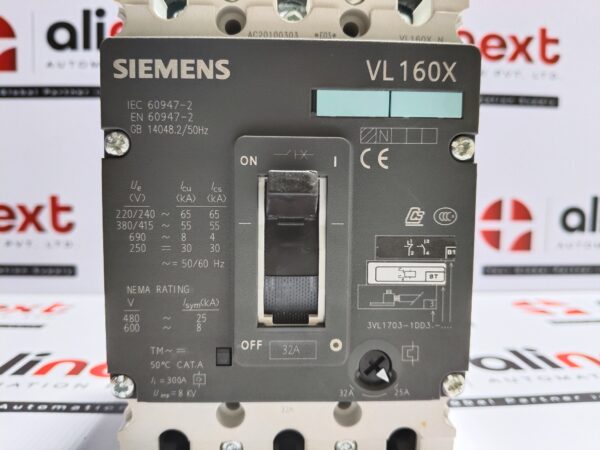

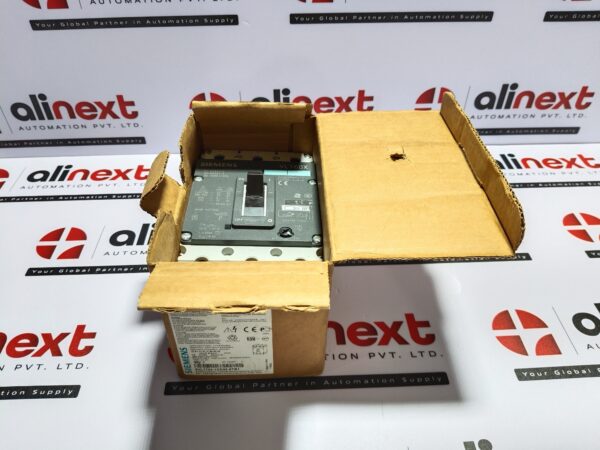

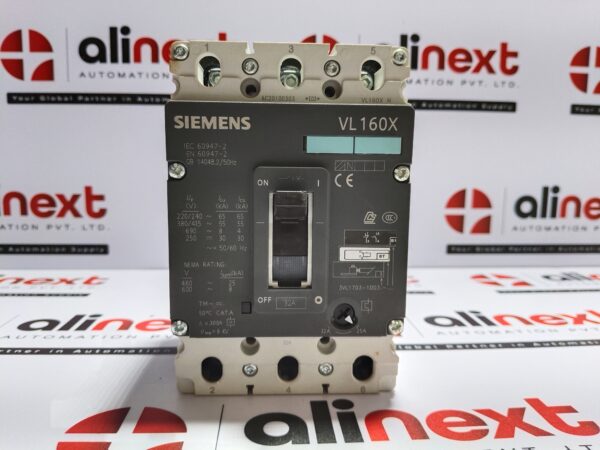

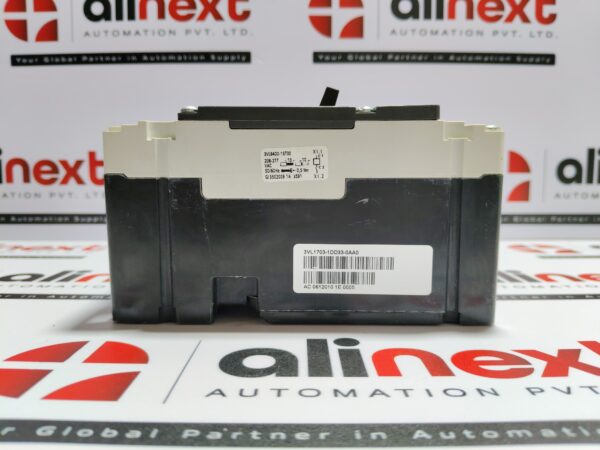

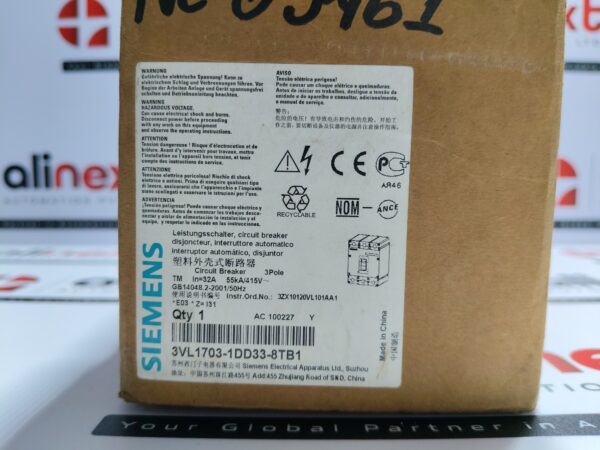

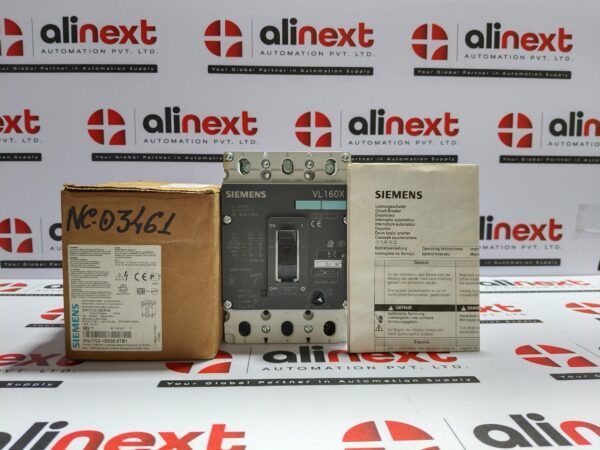

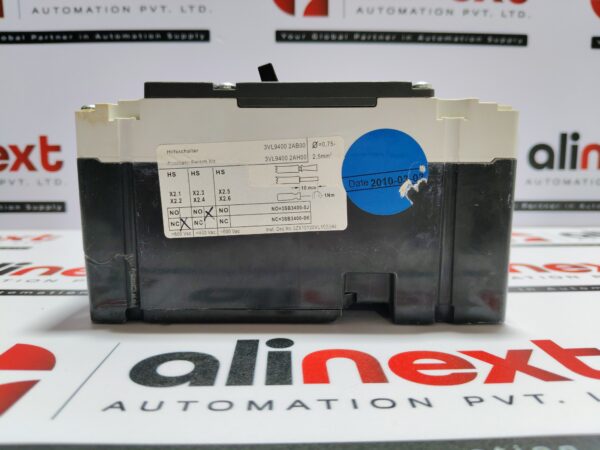

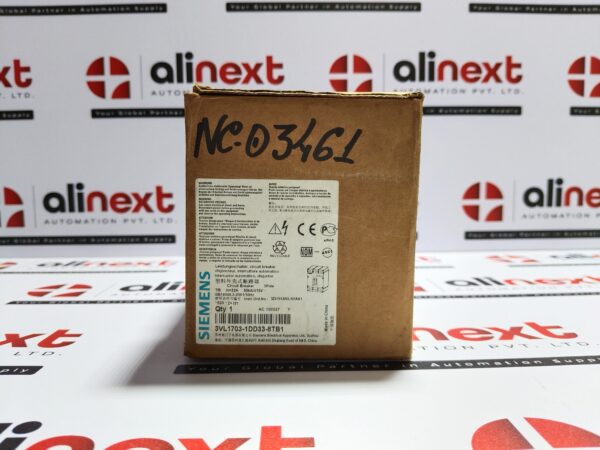

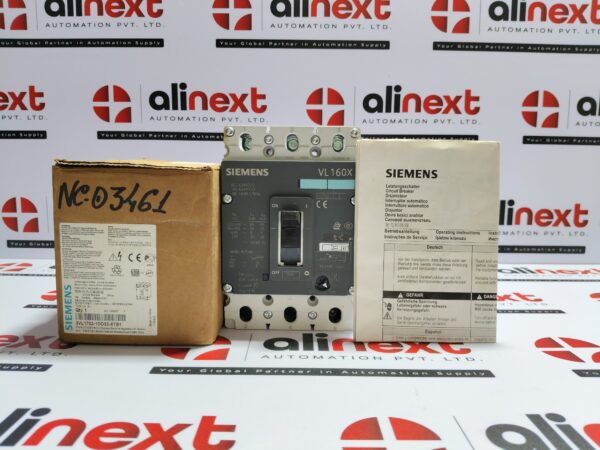

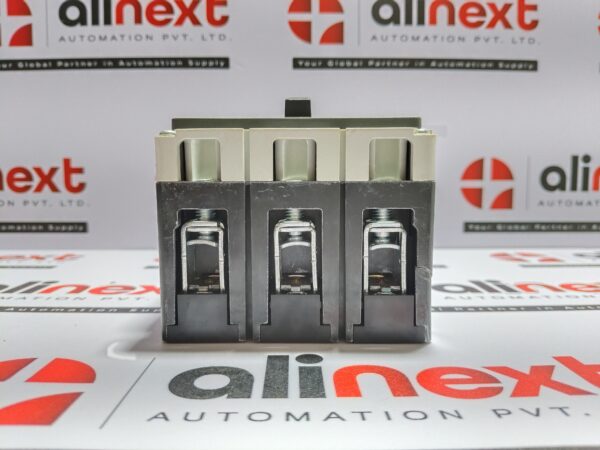

Siemens 3VL1703-1DD33-8TB1 Circuit Breaker VL160X N 3-Pole 32A

Siemens 3VL1703-1DD33-8TB1 Circuit Breaker VL160X N 3-Pole 32A

Manufacturer Siemens AG

Series / Frame: Sentron / VL160X N (“N” = standard breaking capacity)

Poles: 3-pole (no neutral switching in this particular model)

Rated Operational Voltage (AC): Up to 415 V AC nominal; max up to 690 V AC for main circuit

Insulation Voltage (Ui): 800 V AC

Surge / Impulse Withstand Voltage (Uimp): 8 kV

Short-Circuit Breaking Capacity (Icu): 55 kA at 415 V AC

Short-Circuit / Service Breaking Capacity (Ics): Similar to Icu at 415 V (≈ 55 kA)

Overload / Instantaneous Trip: Adjustable thermal/magnetic (overload) up to full scale (32 A), instantaneous short-circuit trip fixed at ~ 300 A

Derating with Temperature: At higher ambient temps current rating goes down; e.g. ~29.8 A at 60 °C, ~27.5 A at 70 °C

Protection Class / IP: IP20

2 Pcs Available

Weight: 2.100 kgs Approx.

ref no: 325
