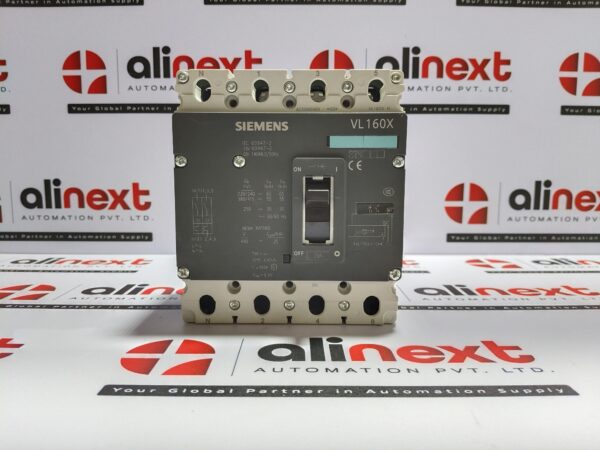

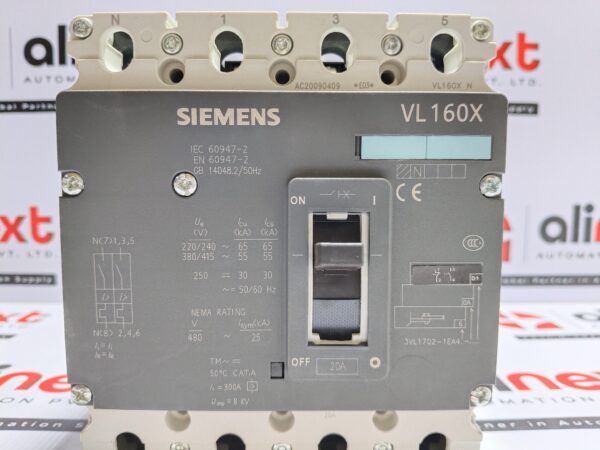

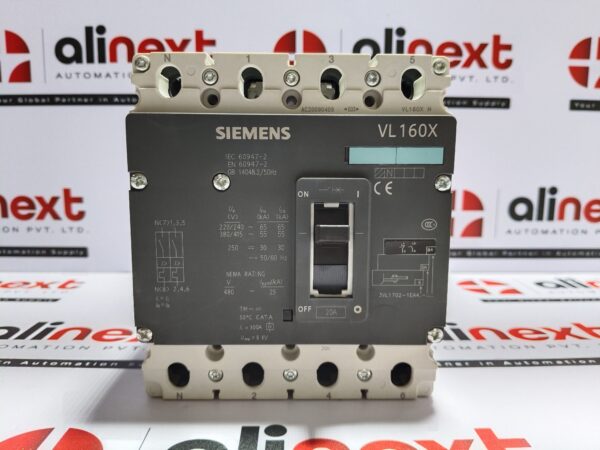

Siemens 3VL1702-1EA46-0AD1 Circuit Breaker VL160X N 4-Pole 20A

Siemens 3VL1702-1EA46-0AD1 Circuit Breaker VL160X N 4-Pole 20A

Manufacturer: Siemens AG

Series / Frame: 3VL / VL160X N (standard breaking capacity)

Poles: 4-pole (3 phases + neutral)

Rated Current (In / Ir): 20 A

Rated Operational Voltage (Ue): Up to 690 V AC

Insulation Voltage (Ui): ~ 800 V AC

Surge/Impulse Withstand Voltage (Uimp): 8 kV

Breaking Capacity (Icu): 55 kA at 415 V AC

Service Breaking Capacity (Ics): Usually same or close to Icu for that voltage (415 V)

Trip / Protection Type: Thermal-Magnetic trip unit (overload + short-circuit) “TM” type; fixed overload current 20 A; short circuit instantaneous set per internal design.

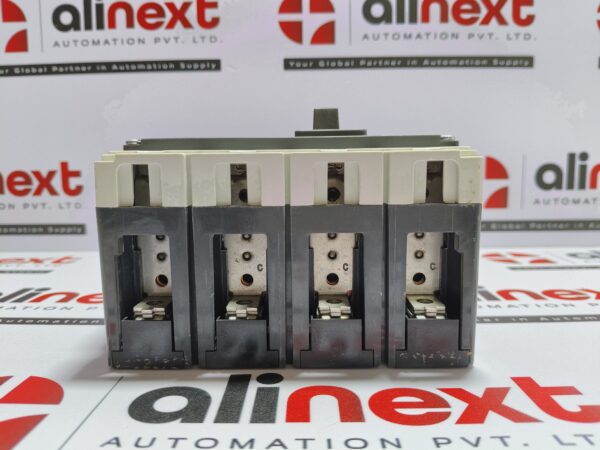

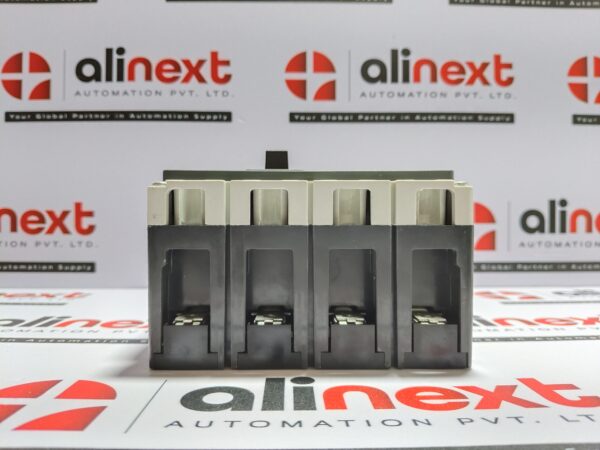

Connection (Terminals): Screw-type terminals, solid and flexible conductors; conductor ranges ~ 2.5-95 mm² for main; smaller for auxiliary, etc.

Mounting / Physical: Fixed mounting; dimensions approx: Height ~ 157.5 mm × Width ~ 139.5 mm × Depth ~ 106.5 mm

Ambient Temp: Operating: 0 °C to +70 °C; Storage: –40 °C to +80 °C

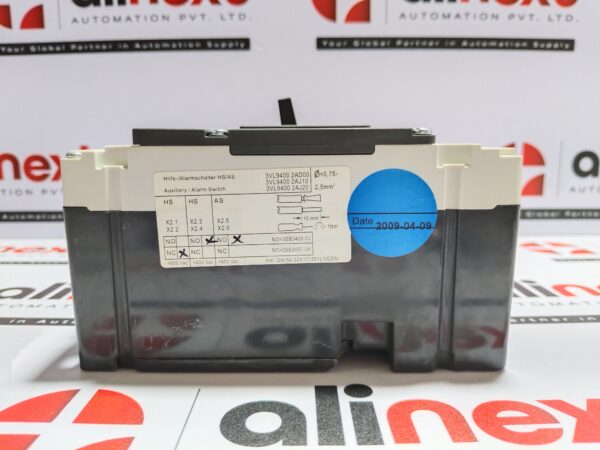

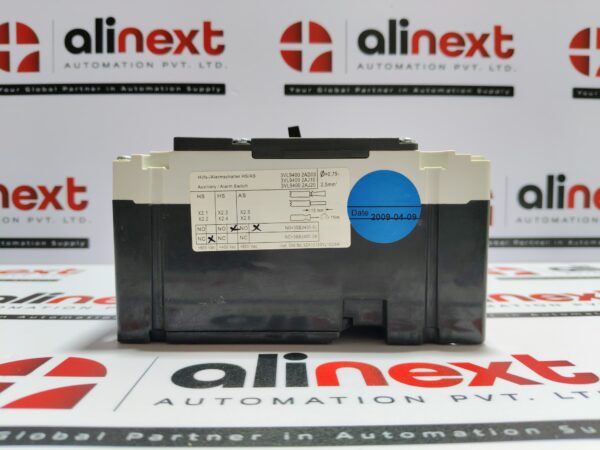

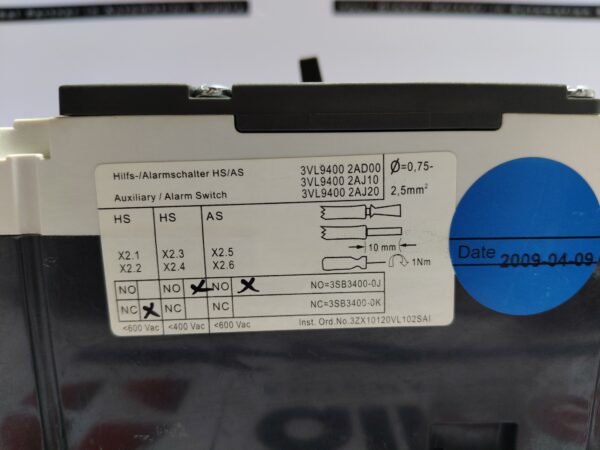

IP / Protection Class: IP20; no auxiliary switches / alarm switch built in for the base variant; “AD1” might indicate certain accessory but not clearly specified.

Mechanical & Electrical Endurance: Mechanical service life: ~ 20,000 operations; Electrical endurance: ~ 10,000 operations.

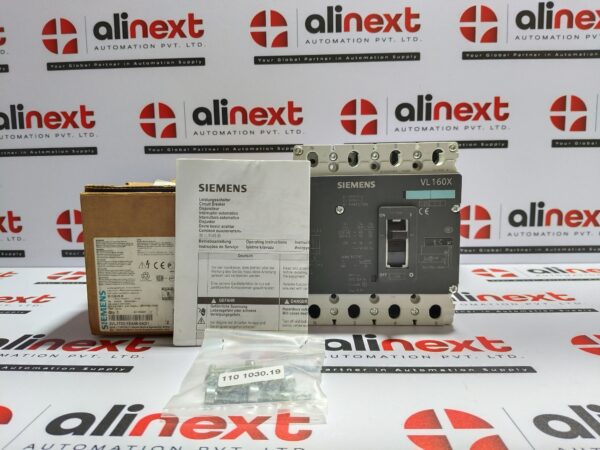

1 Pcs Available

Weight: 2.610 kgs Approx.

ref no: 326
