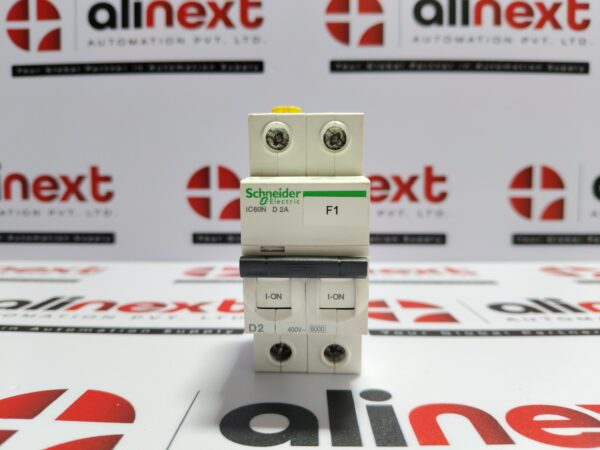

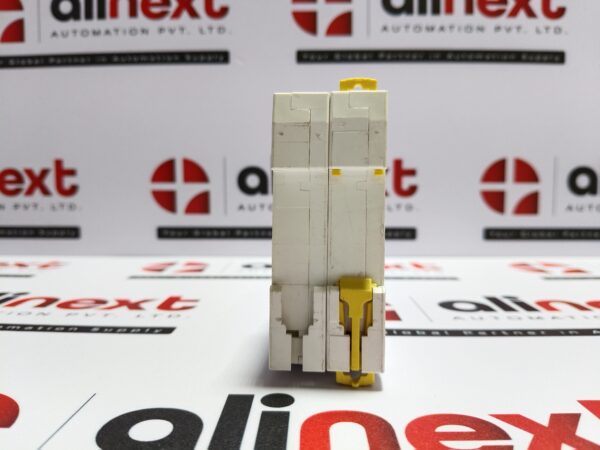

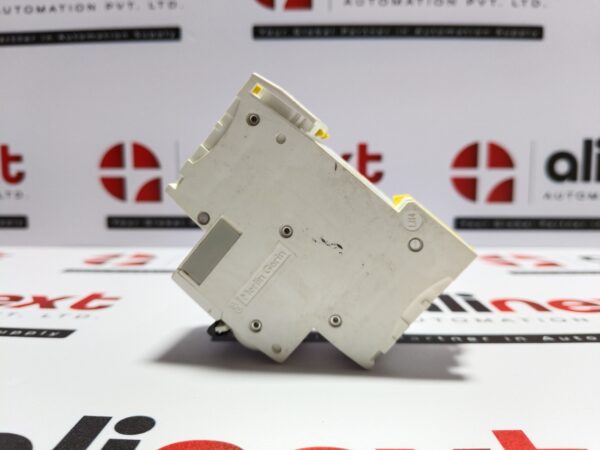

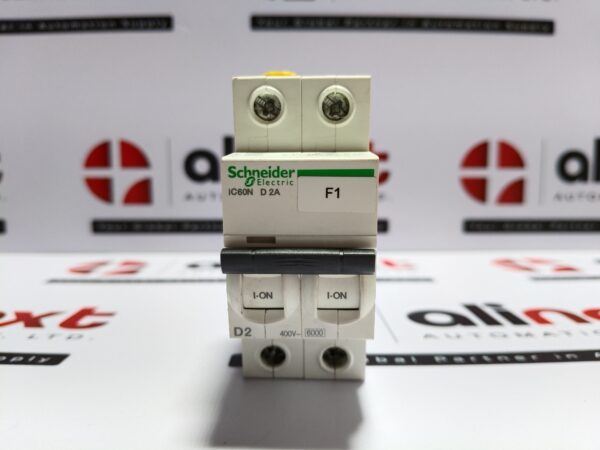

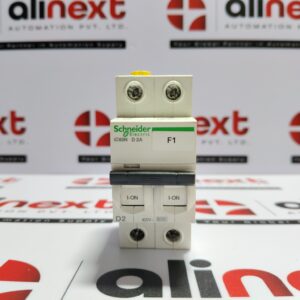

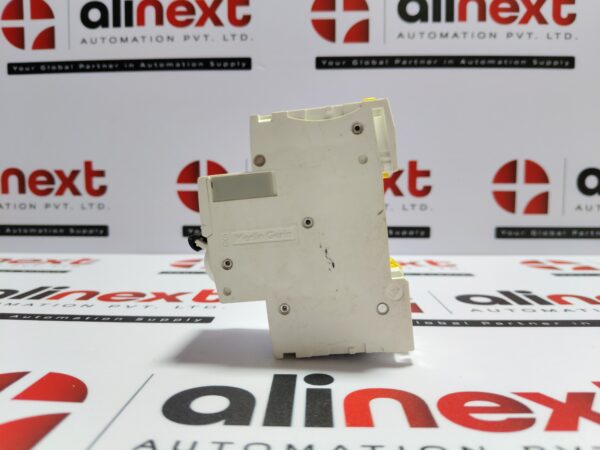

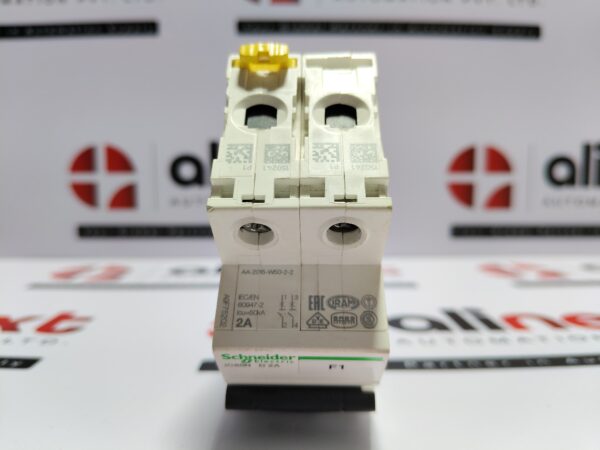

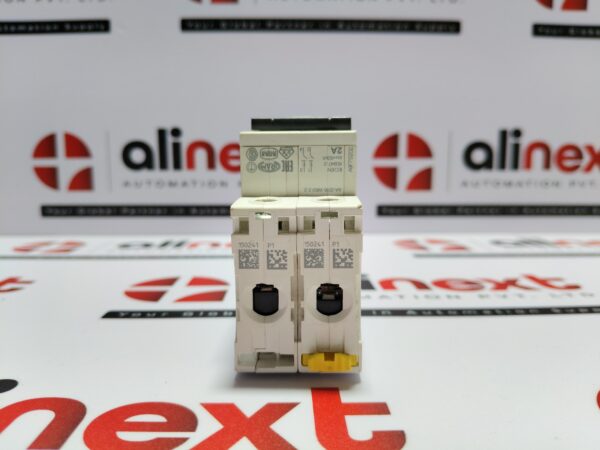

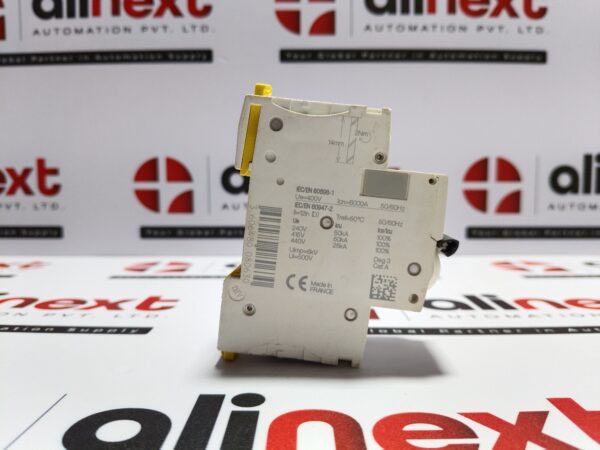

Schneider MCB IC60N D 2A | 6000A 50/60Hz | Acti9 iC60N D-2A

The Schneider Acti9 iC60N D-2A is a robust, high-breaking-capacity miniature circuit breaker with a Type D trip curve, ideal for protecting circuits with considerable inrush currents—such as small motors or transformer-fed loads. It’s well-suited for both residential and industrial environments, offering clear safety features like VisiTrip and VisiSafe, and built to high standards of durability and safety

Series : Acti9 iC60N

Rated Current (In): 2 A

Trip Curve: Type D (10–14 × In)

Pole Configurations: 2P (e.g., A9F45202), also available in 1P, 3P, 4P

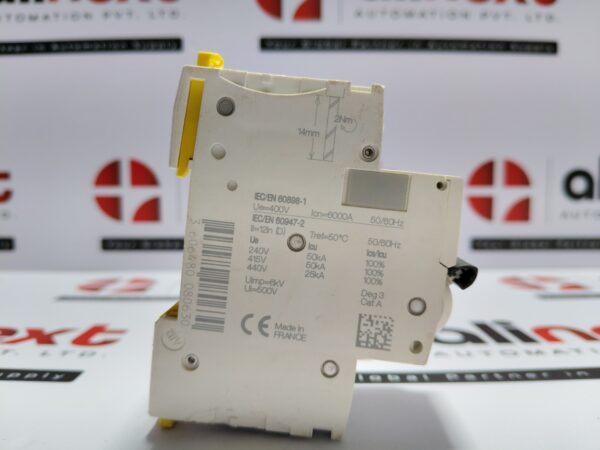

Breaking Capacity: Icn = 6 kA (IEC 60898-1); Icu = up to 50 kA (IEC 60947-2); DC = 10 kA

Insulation Voltage (Ui): 500 V AC

Impulse Withstand Voltage (Uimp): 6 kV

Standards: IEC/EN 60898-1, IEC/EN 60947-2

Mounting: DIN-rail (35 mm)

Terminal Capacity: Rigid up to 25 mm², Flexible up to 16 mm²

Tightening Torque: ~2 N·m

Durability: Electrical 10,000 cycles; Mechanical 20,000 cycles

Protection Rating: IP20

Diagnostic Features: VisiTrip + VisiSafe

Dimensions (2P): Width ~36 mm, Depth ~78–85 mm, Height ~85 mm

2 Pcs Available

Weight: 0.220 kgs Approx.

ref no: 176
