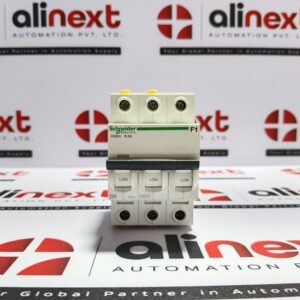

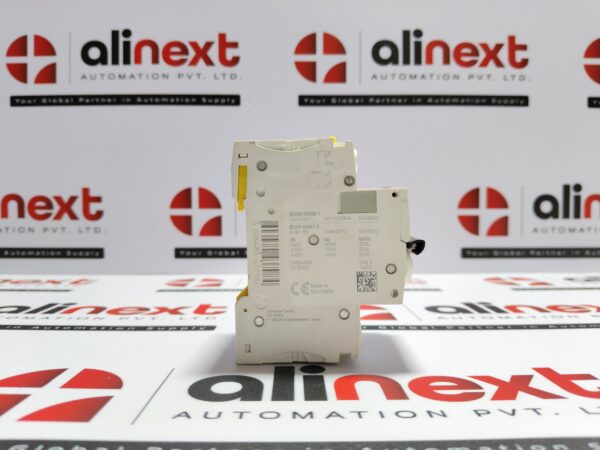

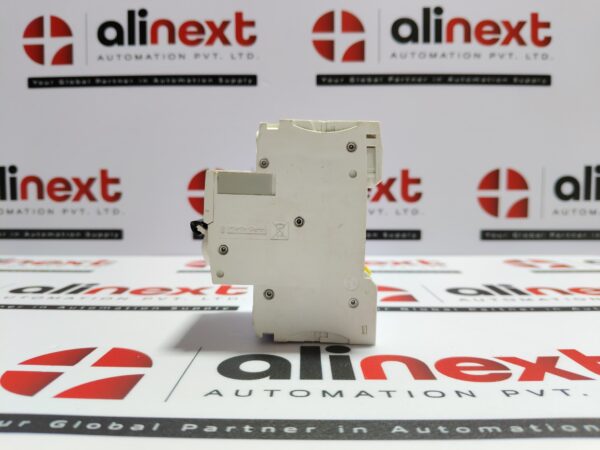

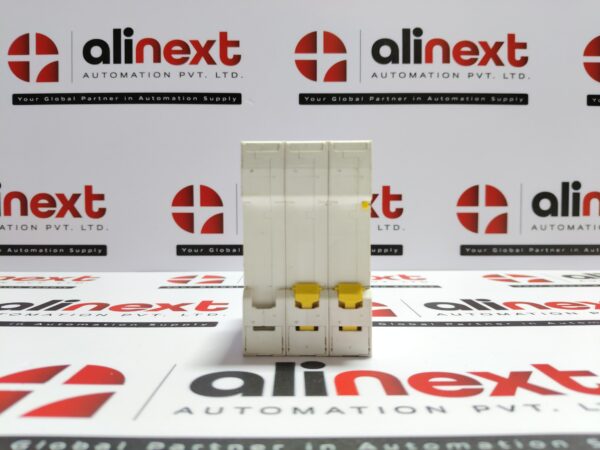

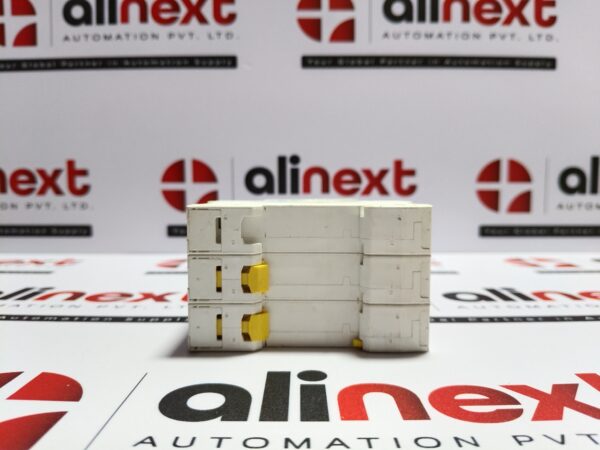

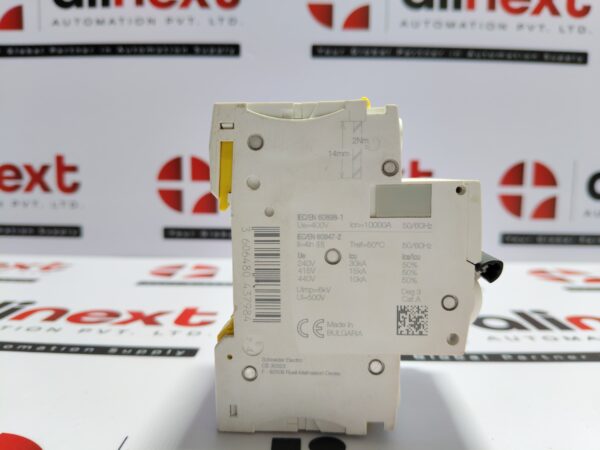

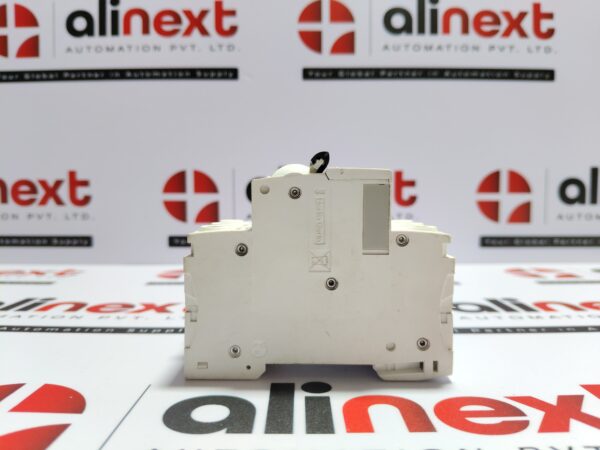

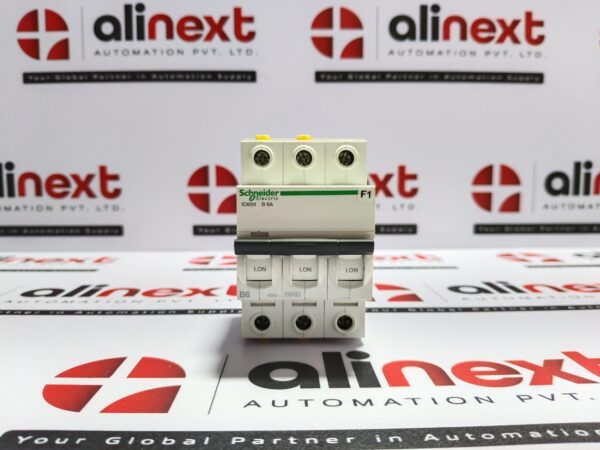

Schneider MCB IC60H B 6A | 10000A 50/60Hz | Acti9 iC60H

This is a low-voltage, DIN-rail mountable Miniature Circuit Breaker (MCB) designed to protect electrical circuits from overloads and short-circuits

Series: Acti9 iC60H (successor to Multi9 C60H)

Rated Current: 6 A

Tripping Curve: Type B – trips at 3–5× In, suitable for resistive loads (lighting, heating, general circuits)

Poles (Variants): Available in 1P (A9F53106), 2P (A9F53206), 3P (A9F53306), and 4P (A9F53406)

Standards Compliance: IEC/EN 60898-1 (residential) & IEC/EN 60947-2 (industrial)

Breaking Capacity: Up to 10 kA at 240 V (1P version)

Terminals: Double tunnel or spring terminals for easy wiring

Protection Offered: Combined overload and short-circuit protection with visual trip indication (VisiTrip)

Primary Function: Protects circuits from damage caused by overcurrent and short-circuits

Ideal For: Lighting, socket circuits, heating circuits, or general-purpose loads where inrush currents are modest

Installation: Snap onto 35 mm DIN rail; widely used in both residential and industrial distribution boards

2 Pcs Available

Weight: 0.340 kgs Approx.

ref no: 174
