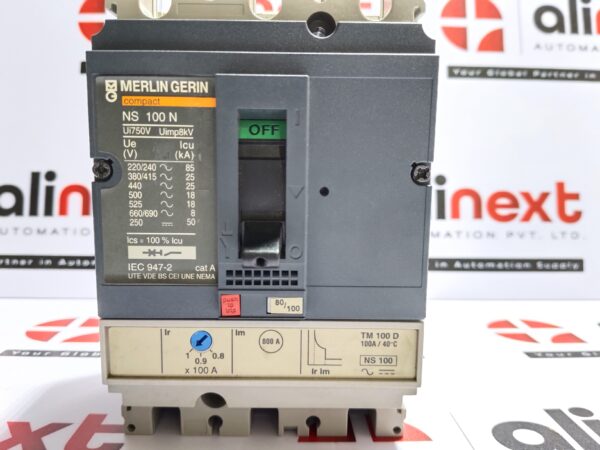

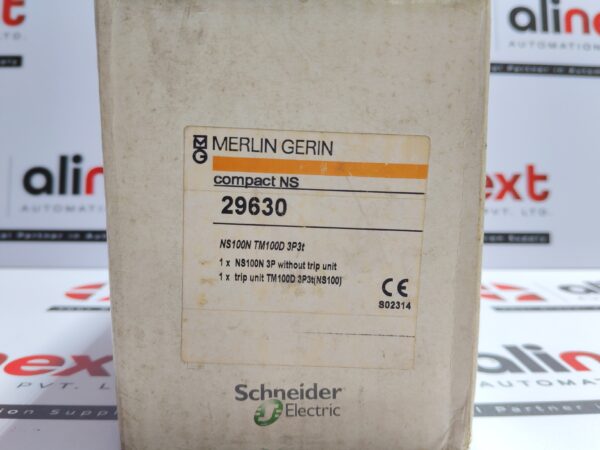

Merlin Gerin MCCB NS100N TM100D 3P3T | 29630

Rated Current: 100 A continuous current (settings adjustable from approximately 80 to 100 A)

Voltage: operates at up to 750 V AC (50/60 Hz) and complies with IEC 60947-2 standards. The nominal voltage range extends to 690 V AC, with dielectric withstand up to 8 kV

Interrupting Capacity: 36 kA at 400 V AC (50 Hz)

Poles & Terminals: 3-pole with 3 terminals (3P3T)—it can handle three-phase installations with screw-type connections

IEC 947-2

Ui 750V

Uimp 8Kv

cat A

1 pc Available

Weight: 3.330 kgs Approx.

ref no: 45
