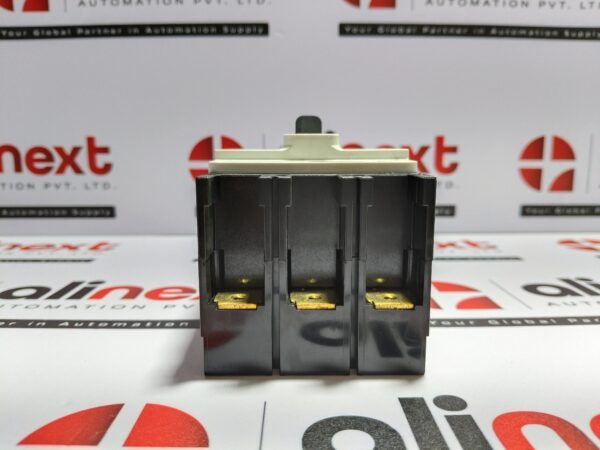

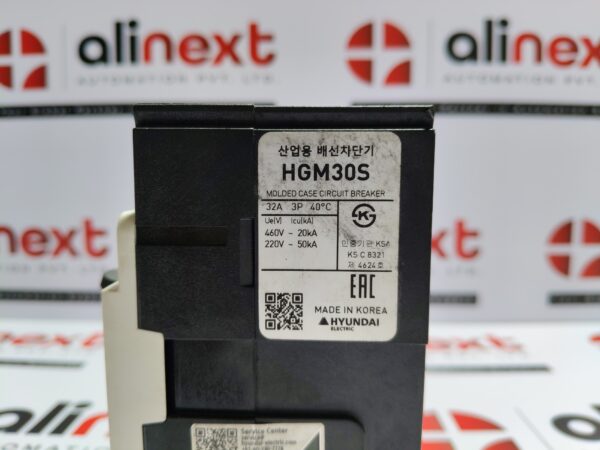

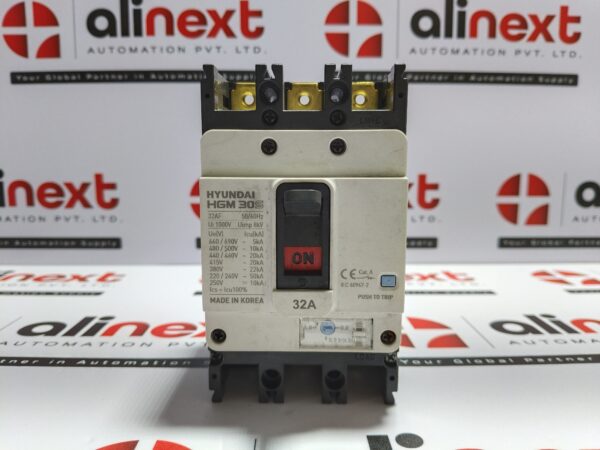

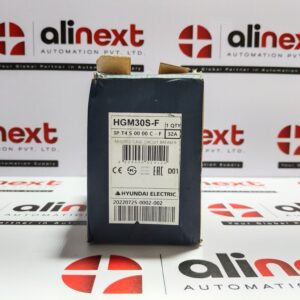

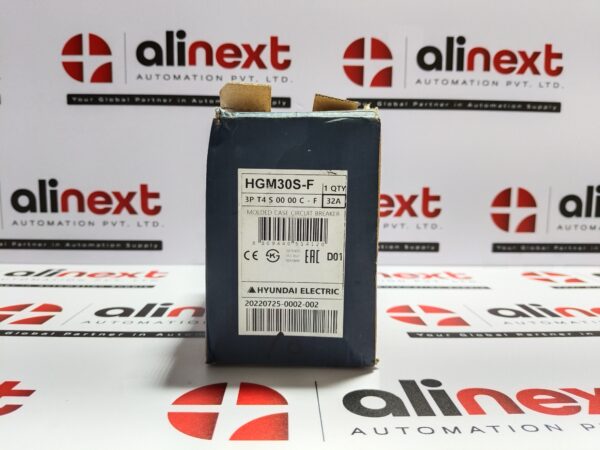

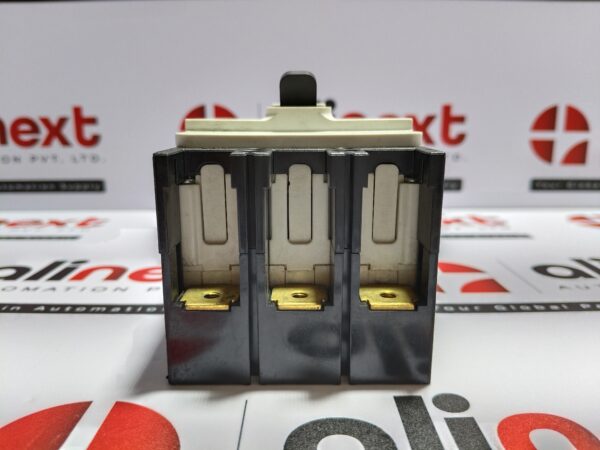

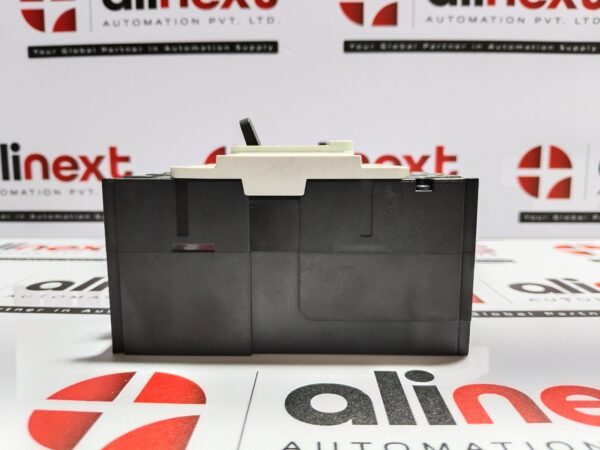

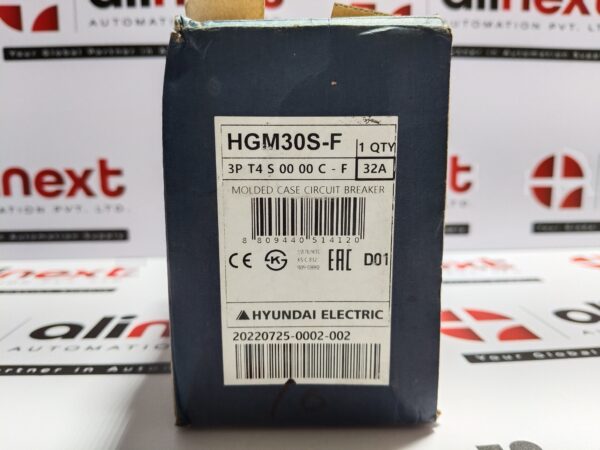

Hyundai HGM30S-F Circuit Breaker HGM 30S 3Pole 32Amp

Hyundai HGM30S-F Circuit Breaker HGM 30S 3Pole 32Amp

Brand / Series: Hyundai Electric — HG-series Molded Case Circuit Breakers (HGM type)

Model: HGM30S-F, 3-pole, 32 A

Rated Current: 32 A @ 40 °C

Frame / AF Rating “30” frame (i.e. HGM30) — AF 32 frame size type

Rated Operational Voltage (Ue): Up to 460-500 VAC in many variants; catalogs show voltage classes including 440/460 V, and up to 690 AC possible depending on model frame.

Breaking / Short-Circuit Capacity (Icu): For similar “30” frame 32A models: ~ 16-20 kA at 440/460 VAC.

Insulation Voltage (Ui): ~ 1,000 V AC for HG-series MCCBs.

Impulse Withstand Voltage (Uimp): ~ 8 kV.

Protection / Trip Type: Thermal-magnetic (overload + short-circuit / instantaneous) protection.

Utilization Category: Category A (i.e. general usage under IEC norms)

Poles: 3-pole.

Mechanical & Electrical Endurance: Mechanical ~30,000 operations; Electrical ~10,000 operations.

Standards / Protection Degree: Meets IEC 60947-2; Pollution degree 3; suitable for isolation etc.

4 Pcs Available

Weight: 0.750 kgs Approx.

ref no: 343
