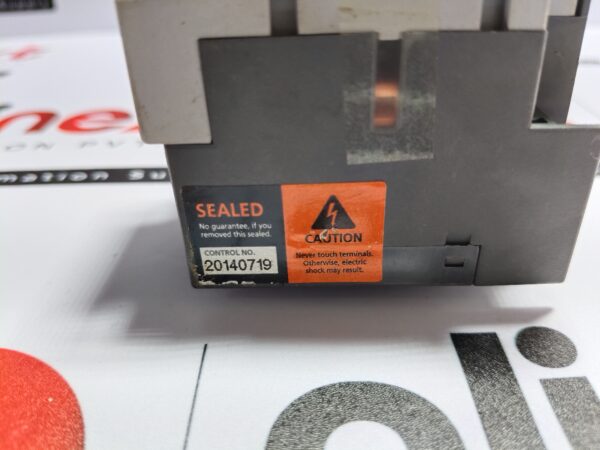

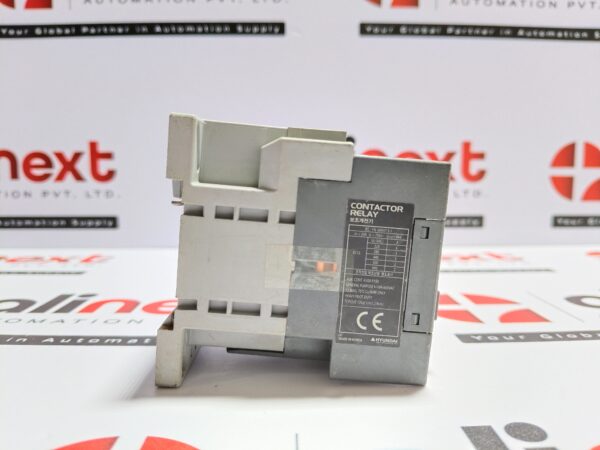

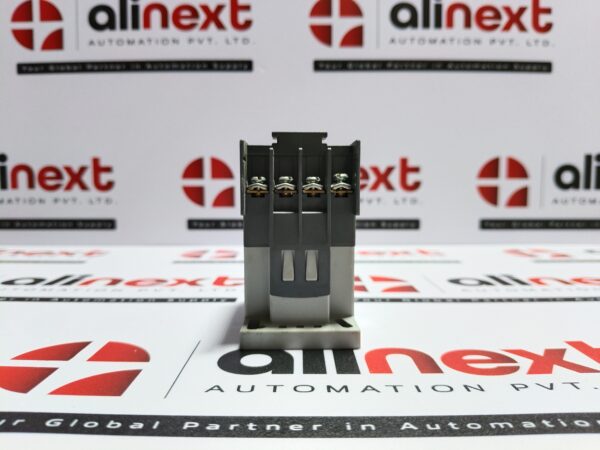

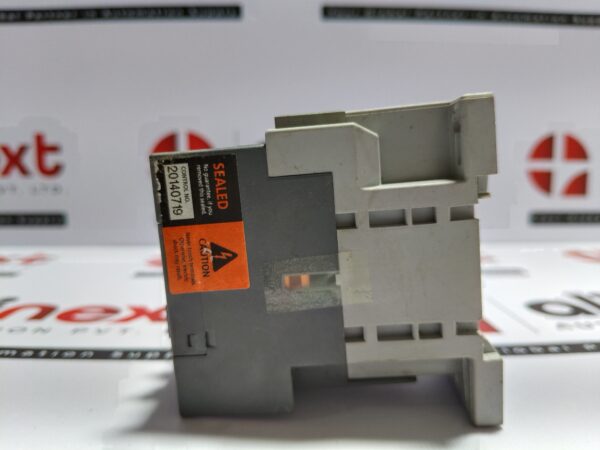

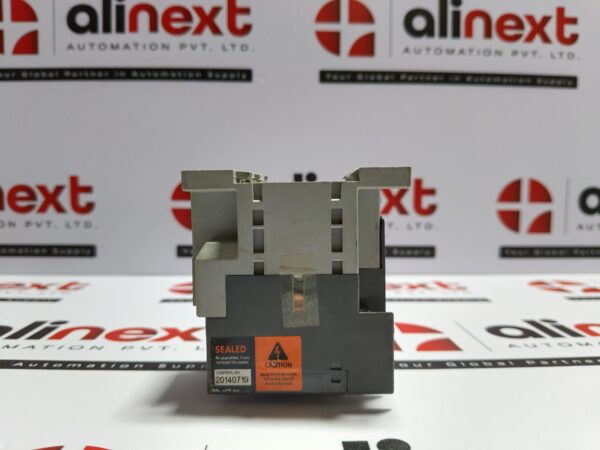

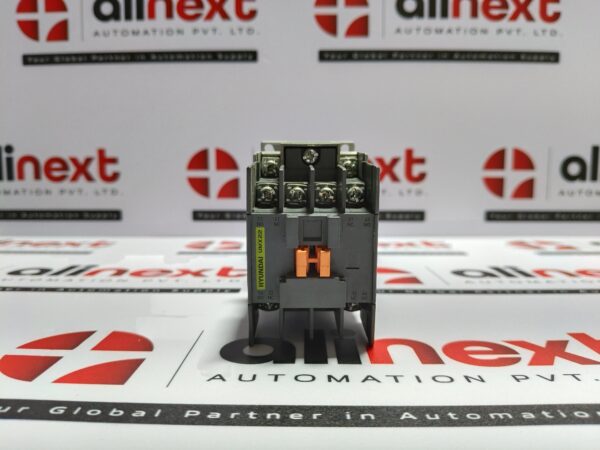

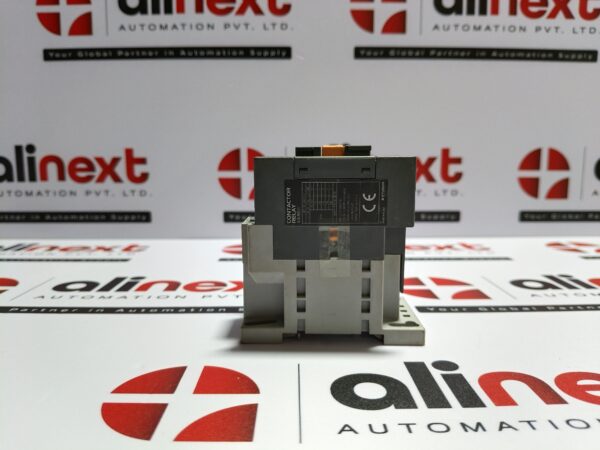

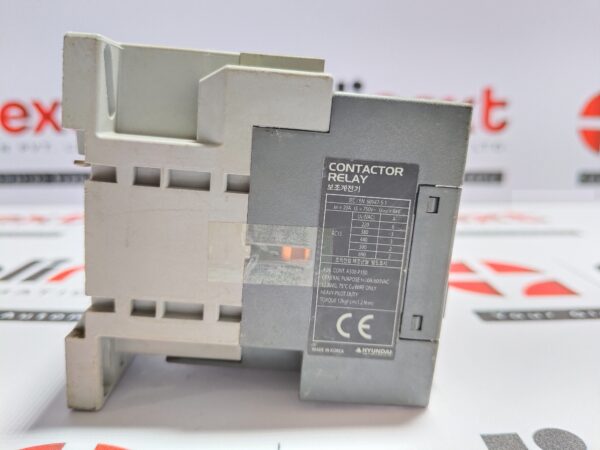

Hyundai Contactor Relay UMX22 | UMX-22

The UMX-22 relay serves as an auxiliary contact block, enabling additional switching functions such as signaling, interlocking, or control feedback when paired with primary contactors—especially useful in heavy industrial or marine control systems.

Type: Contactor Relay (Auxiliary Module)

Standards: IEC/EN 60947-5-1

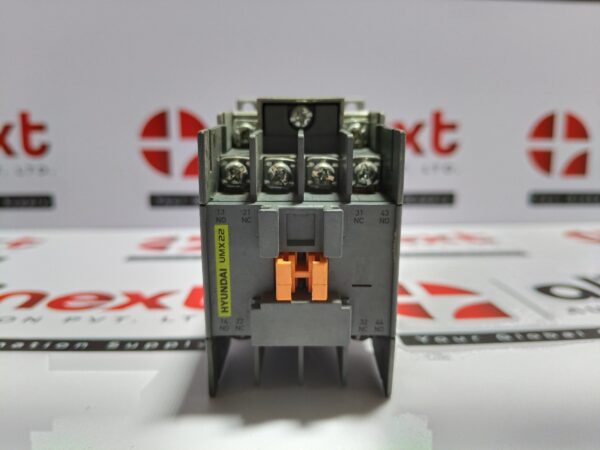

Contacts: 2 NO + 2 NC

Thermal Current (Ith): 20 A

Rated Voltage (Ui): 750 V AC

Impulse Voltage (Uimp) : 6 kV

Aux Utilization Cat.: A300-P150

Operational Current: 10 A @ 600 VAC

Wire Spec: 12 AWG, 75 °C copper, torque 1.2 N·m

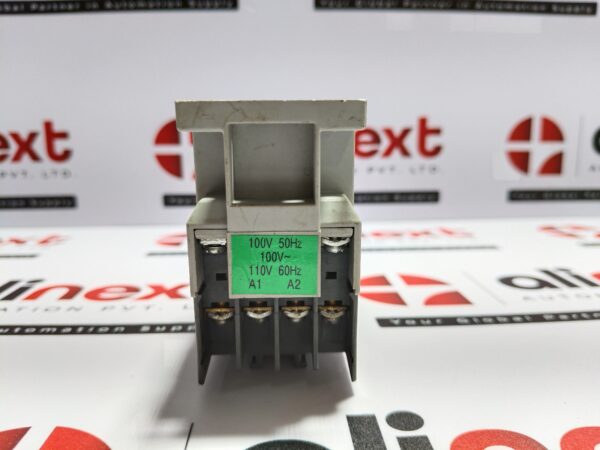

Coil Options: 100-110 V AC (50/60 Hz), 220 V AC 60 Hz

2 Pcs Available

Weight: 0.310 kgs Approx.

ref no: 173
