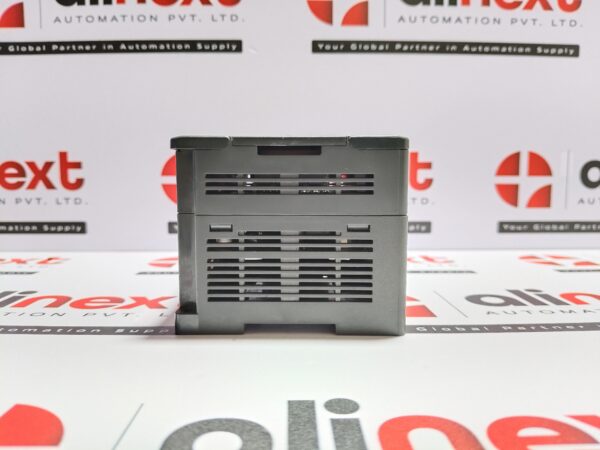

This is a discrete output module used to expand the Input/Output (I/O) capability of a VersaMax Micro or Nano Programmable Logic Controller (PLC), which are small, modular controllers used in industrial automation.

Product Type: Discrete Output Expansion Module

Family: GE VersaMax Micro Series

Model Number: IC200UER008-B (The ‘-B’ typically denotes the hardware revision)

I/O Count: 8 Relay Outputs

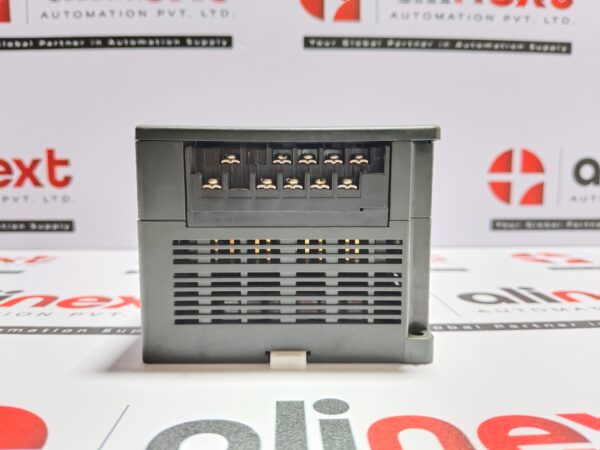

• The terminal block labeling in the image shows outputs Q1 through Q8.

Output Type: Relay (The label clearly states “Relay Outputs”). The relays are Normally Closed (NC) contacts on the connector for outputs Q2, Q4, Q6, and Q8, and the lower terminals show common NC points.

Power Supply: Requires 24 VDC input power (indicated by “24VDC IN -” and “+”).

Output Rating: The maximum output rating is 2A per channel at 24VDC or 240VAC (indicated by “Q1-8: 24VDC 2A MAX” and “240VAC 2A MAX”).

Function: It is used to switch a variety of AC or DC loads (like motor starters, solenoids, or indicator lights) based on the logic processed by the main VersaMax Micro PLC.

Expansion: It connects to the main VersaMax Micro PLC’s expansion port, allowing the overall control system to have more I/O points than the base unit provides.

1 Pcs Available

Weight: 0.270 Kgs Approx.
