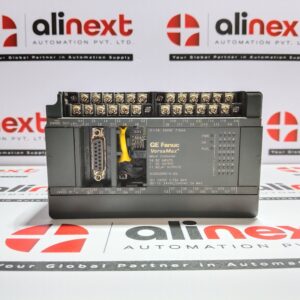

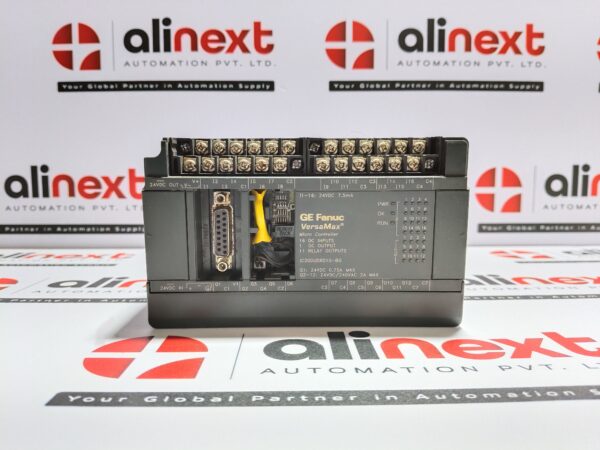

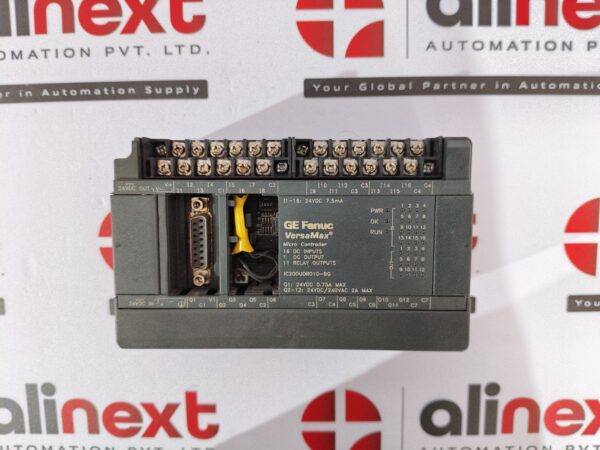

GE Fanuc VersaMax Micro Controller PLC IC200UDR010-BG
The specific model is IC200UDR010-MG or a similar variation of the IC200UDR010 series. The -MG and -BG suffixes typically denote minor revisions, firmware versions, or packaging changes and do not alter the core specifications of the controller.
| Total I/O Points | 28 points (built-in) |
| DC Inputs | 16 x 24V DC inputs (configurable as positive/negative logic) |
| Outputs | 12 total outputs: |
| – 1 x DC Output (Q1): 24V DC, 0.75A max | |
| – 11 x Relay Outputs (Q2-Q12): Normally-open (Form A), 2A max per circuit at 24V DC / 240V AC | |
| Power Supply | 24V DC Nominal Input Power |
| Output Power | Provides a built-in +24V DC supply (200 mA max) for input circuits and user devices. |
| Communication | Includes a built-in RS-232 port (the 9-pin D-sub connector visible on the front) for programming and communication (SNP Slave, Modbus RTU Slave, or Serial In/Out |

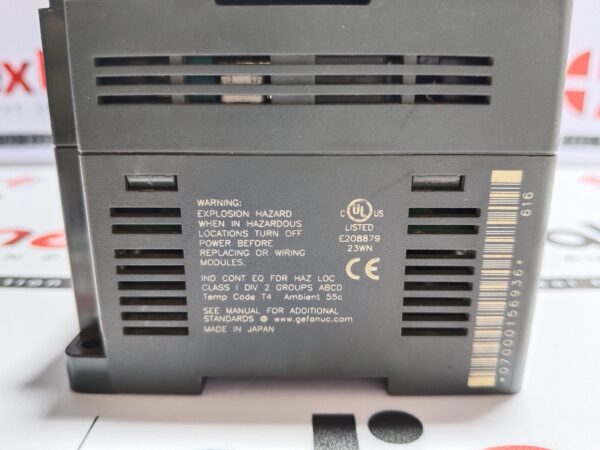

Country : Made in Japan.
1 Pcs Available
Weight: 0.490 Kgs Approx.
ref no: 516
