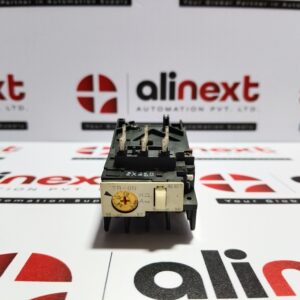

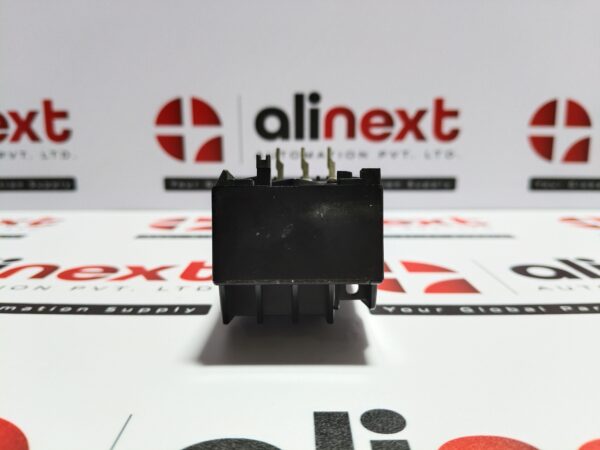

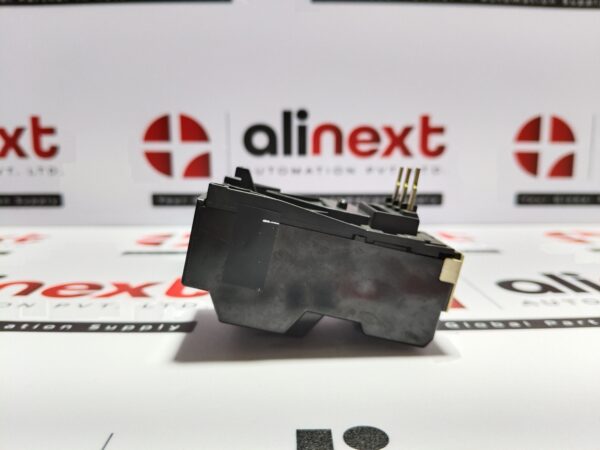

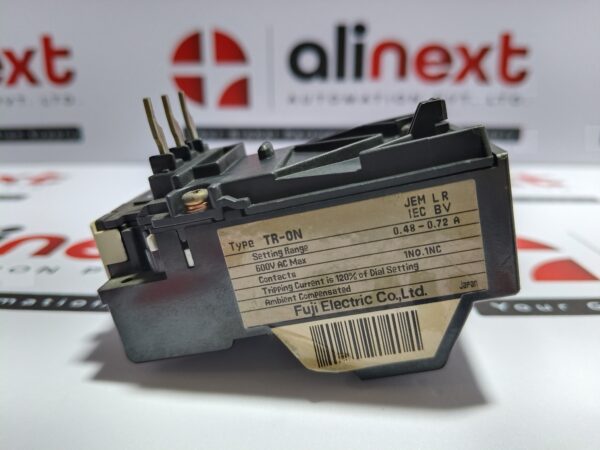

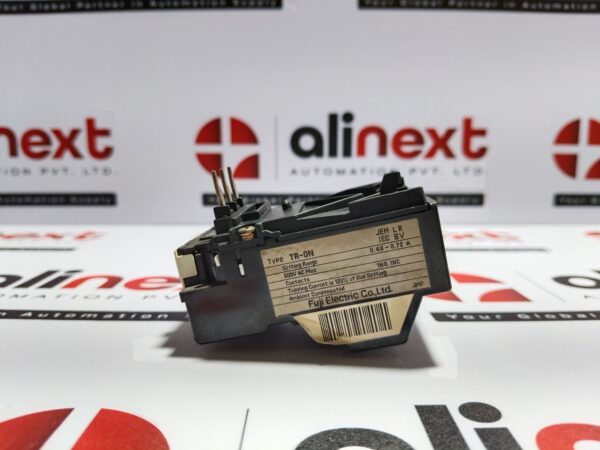

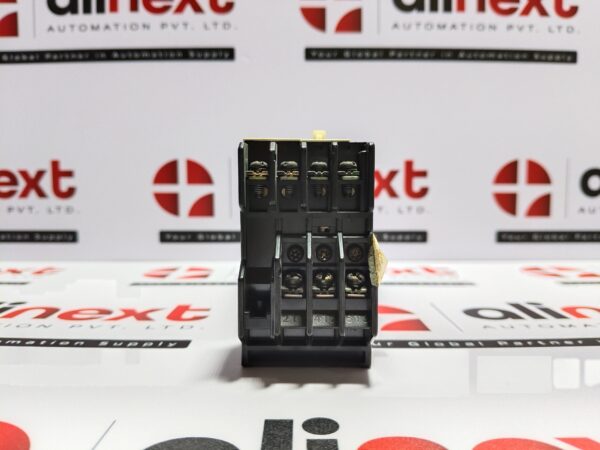

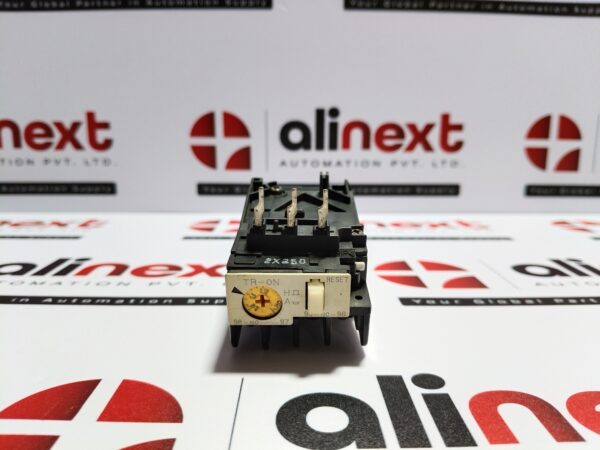

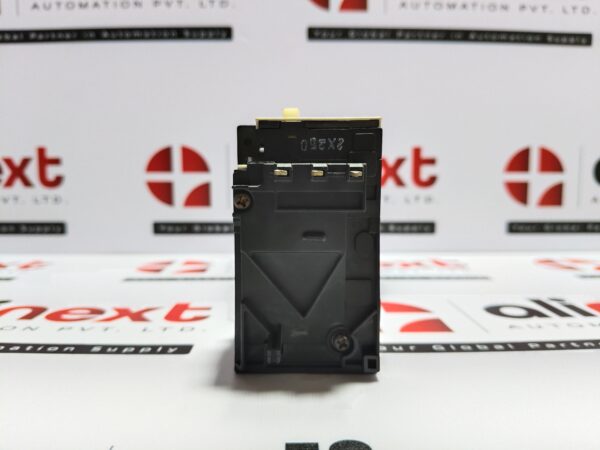

Fuji Electric Thermal Overload Relay TR-0N | TR0N

Fuji TR-0N is a thermal overload relay (for SC-0 contactors), adjustable across small motor current ranges (~0.5–5.5 A), providing Class 10 overload protection with built-in NO/NC auxiliary contacts

Rated Operational Voltage (Ue): 600 V AC (max, depending on system)

Rated Current Range: Adjustable trip current range (varies by sub-type, e.g., TR-0N)

Overload Protection: Inverse-time tripping (bimetallic)

Trip Class: Class 10 (standard)

Poles Protected: 3-phase motors

Auxiliary Contacts: 1 NO + 1 NC (for signaling/trip indication)

Reset Mode : Manual / Automatic reset switch

Frequency: 50/60 Hz

Applications: Protection of 3-phase induction motors against Overload, Phase loss/single-phasing, Prolonged overcurrent, Commonly used in motor starters (paired with Fuji SC-0 contactor), Ideal for industrial control panels, pumps, compressors, conveyors.

3 Pcs Available

Weight: 0.110 kgs Approx.

ref no: 188
